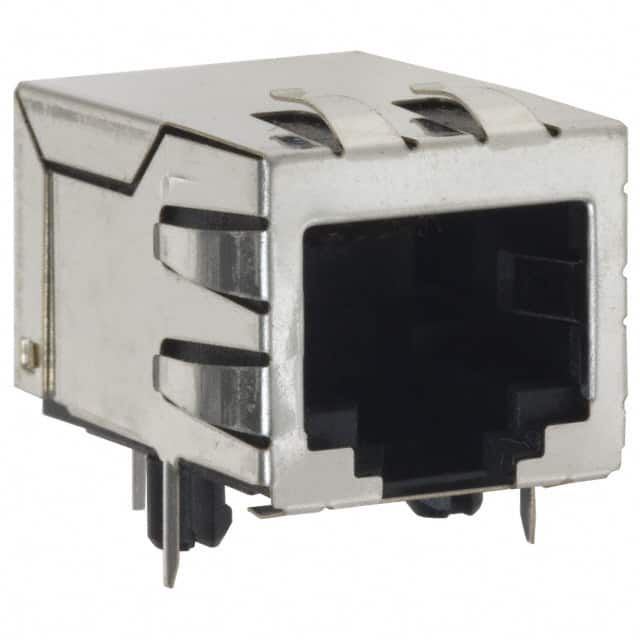

SS-7188S-A-PG4-1-BA Shielded modular jack, 8p8c (RJ45), 1 port, through hole, right angle orientation, with board lock and EMI finger.
Mfr Part #:

SS-7188S-A-PG4-1-BA

Available from 1 distributors
Mfr Name: Stewart Connector
Stewart Connector
Shielded modular jack, 8p8c (RJ45), 1 port, through hole, right angle orientation, with board lock and EMI finger.
✓ Total Stock: 80 pcs
$ Price Range: $1.28 - $2.19

SS-7188S-A-PG4-1-BA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request On Request On Request 2026-04-28 23:15:24
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SS-7188S-A-PG4-1-BA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
SVHC Present
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

SS-7188S-A-PG4-1-BA Description

Short technical summary and product information.

The SS-7188S-A-PG4-1-BA is a shielded modular jack from Stewart Connector. It features 8 positions (8p8c) for RJ45 Ethernet applications in a single-port configuration. The connector is through-hole mounted with a 90° right-angle orientation and solder termination. Shielding includes an EMI finger for enhanced electromagnetic interference protection, and a board lock feature secures the connector to the PCB. The tab direction is down. This jack is rated for Cat5e performance and uses gold-plated copper alloy contacts. It does not contain an LED.

SS-7188S-A-PG4-1-BA Quick Information

Product Type: Modular Connector Jack
Series: PG4
Canonical Name: Modular Jack, 8p8c (RJ45), 1 Port, Through Hole, Right Angle, Shielded
Subcategory: RJ45 Connector

SS-7188S-A-PG4-1-BA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SS-7188S-A-PG4-1-BA Estimated Pricing

Qty Low High
1+ $2.19 $2.19
10+ $1.86 $1.86
25+ $1.75 $1.75
80+ $1.52 $1.52
560+ $1.43 $1.43
1,040+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

SS-7188S-A-PG4-1-BA Features

  • Shielded with EMI finger for noise protection.
  • Cat5e rated for Ethernet applications.
  • Gold-plated copper alloy contacts.
  • Right angle through-hole mounting.
  • Board lock for secure PCB retention.

SS-7188S-A-PG4-1-BA Applications

  • Used in Ethernet networking equipment.
  • Suitable for industrial control panels.
  • Ideal for data communication devices.
  • Applied in patch panels and hubs.

SS-7188S-A-PG4-1-BA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the connector type and configuration?

This is a modular jack with 8 positions (8p8c) for RJ45 Ethernet, single port, single row.

What is the mounting style?

Through hole mounting with right angle (90°) orientation and solder termination.

Is this connector shielded?

Yes, it is shielded and includes an EMI finger.

What is the performance rating?

Rated for Cat5e.

Does this jack have an LED?

No, it does not contain an LED.

What is the contact material and finish?

Copper alloy contacts with gold finish.
