Mfr Part #:

SS-6488-NF

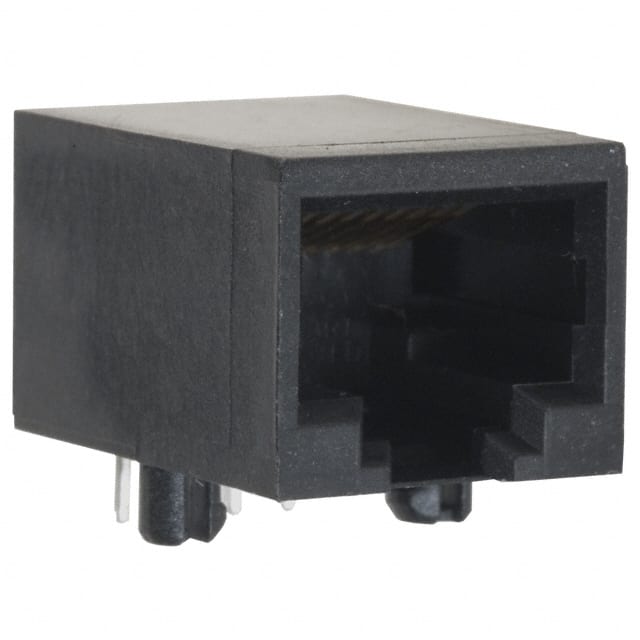

Modular jack, 8P8C (RJ45) configuration, single port, through hole right angle mount, unshielded, with board lock feature.

✓ Total Stock: 25 pcs

$ Price Range: $0.86 - $1.57

SS-6488-NF Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Seba Components ✓ Non-Authorised Inventory information	25 pcs On Request	25 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SS-6488-NF Description

Short technical summary and product information.

The Stewart Connector SS-6488-NF is a single-port 8P8C (RJ45) modular jack designed for through-hole mounting with a 90° right-angle orientation, making it suitable for edge-mounted applications on PCBs. It features an unshielded design and includes a board lock for secure attachment during soldering.

Contact termination is solder, with contacts made from copper alloy and a gold finish for reliable electrical connections. The tab direction is down, and this jack does not include any LED indicators.

This connector is RoHS3 compliant and has an MSL of 1 (unlimited floor life). It is categorized under modular connector jacks and is commonly used in Ethernet networking applications where a compact, low-cost, unshielded interface is required.

SS-6488-NF Quick Information

Product Type: Modular Connector Jack (RJ45)

Canonical Name: Modular Jack 8P8C, RJ45, Single Port, Through Hole, Right Angle, Unshielded

Subcategory: RJ45 / 8P8C Jack

SS-6488-NF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SS-6488-NF Estimated Pricing

Qty	Low	High
1+	$1.57	$1.57
10+	$1.34	$1.34
25+	$1.17	$1.17
105+	$1.13	$1.13
280+	$1.05	$1.05
525+	$1.00	$1.00
1,015+	$0.95	$0.95
2,520+	$0.89	$0.89
5,005+	$0.86	$0.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

SS-6488-NF Features

8P8C (RJ45) modular jack configuration.
Single port, through hole, right angle mount.
Unshielded design with board lock feature.
Gold plated copper alloy contacts.
RoHS3 and REACH compliant (unverified).

SS-6488-NF Applications

Ethernet network interface connections.
PCB edge-mounted RJ45 applications.
Low cost unshielded data links.
Embedded system LAN ports.

SS-6488-NF FAQs

6 frequently asked questions generated from this part’s specifications.

What is the connector type and configuration of SS-6488-NF?

It is an 8P8C (RJ45) modular jack with a single port and one row of positions.

What is the mounting style of this connector?

Through hole mounting with a 90° right angle orientation and solder termination.

Is the SS-6488-NF shielded?

No, it is unshielded and does not contain an LED.

What contact materials and finish are used?

Copper alloy contacts with a gold finish.

Does the jack have any board retention features?

Yes, it includes a board lock feature.

What is the tab direction of this modular jack?

The tab direction is down.
