| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Halogen Free | |
| LED Color | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tab Direction | |
| Termination |

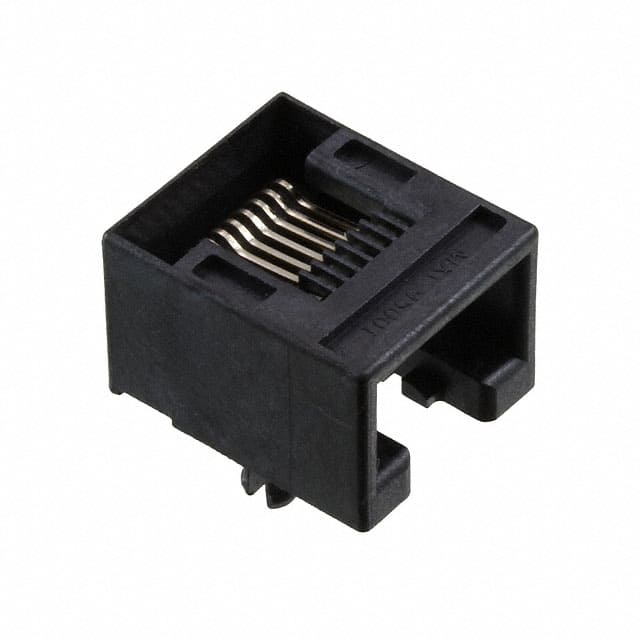

The Molex 0955012881 is a modular connector jack designed for 8p8c (RJ45, Ethernet) applications. It features a right angle (90°) orientation and through hole mounting, making it suitable for compact PCB layouts where space is limited. The connector is unshielded and rated for Cat3 performance, providing basic signal integrity for lower-speed networking and telecommunications equipment.
The jack includes a board lock feature to secure the connector to the PCB during soldering, ensuring reliable mechanical retention. Contacts are made of copper alloy with a gold finish, offering good conductivity and corrosion resistance. The termination method is solder, compatible with standard wave soldering processes.
This component does not contain LEDs, simplifying the design for applications where visual status indication is not required. The tab direction is down, which is typical for standard RJ45 jacks. With a single port and single row of contacts, it is a straightforward solution for basic Ethernet connectivity.
Jack, 8p8c (RJ45, Ethernet).
8p8c (RJ45, Ethernet).
Through hole.
90° angle (right).
No, unshielded.
Gold.
Cat3.
