| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Release Force | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

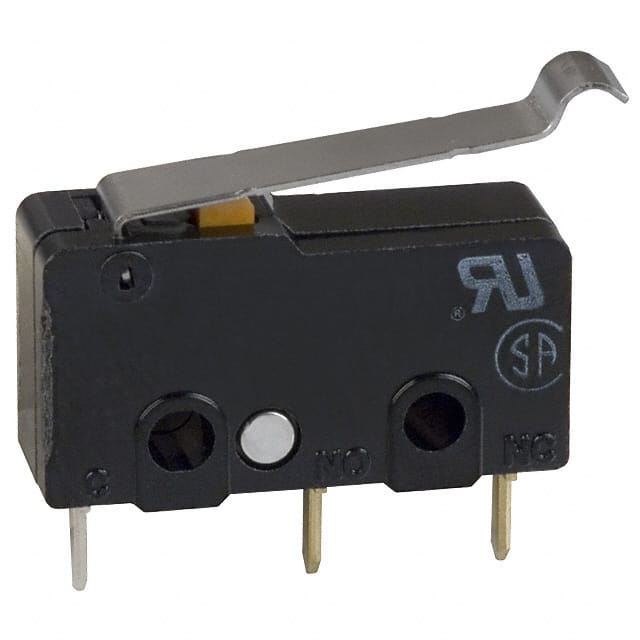

The Omron SS-5GL13D is a subminiature basic switch from the SS series, known for high reliability and security. It offers a current rating of 5A at 125V and features a Single Pole Double Throw (SPDT) contact form.
This switch is equipped with a lever, simulated roller actuator and is designed for through-hole mounting with PC pin termination style. It operates within a temperature range of -25°C to 85°C and has an ingress protection rating of IP40.
The switch is built with two split springs, ensuring high stability and durability with a rated life of 30,000,000 operations. It is suitable for interlock applications with a 1 mm minimum contact gap available on some models.
Key mechanical specifications include an operating force of 50gf, a release force of 6.118gf, a differential travel of 0.8mm, and an overtravel of 1.2mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Omron SS-5GL13D switch has a current rating of 5A at 125V AC.
The SS-5GL13D switch features a lever, simulated roller actuator.
The operating temperature range for the SS-5GL13D switch is -25°C to 85°C.
The Omron SS-5GL13D switch is designed for through-hole mounting.
The SS-5GL13D switch has a SPDT (Single Pole Double Throw) contact form.
