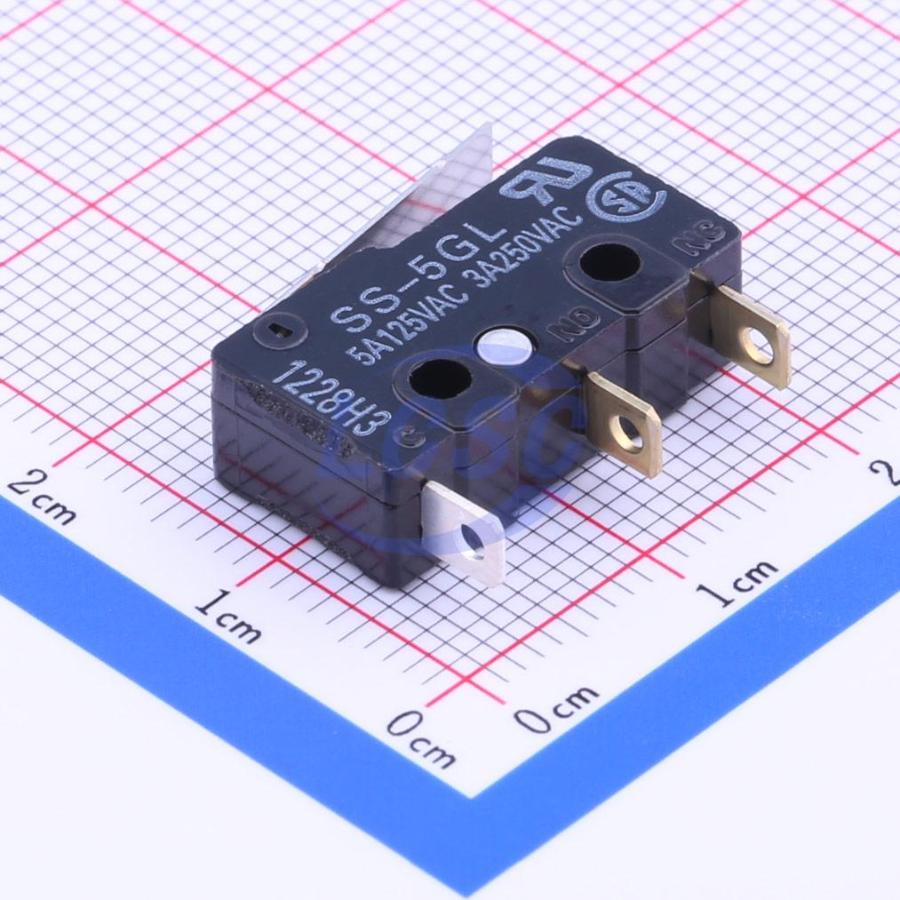

SS-5GL The Omron SS-5GL is a subminiature basic switch designed for reliability. It features a 5A 125V rating and an SPDT circuit.
Mfr Part #:

SS-5GL

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron SS-5GL is a subminiature basic switch designed for reliability. It features a 5A 125V rating and an SPDT circuit.
✓ Total Stock: 270 pcs
$ Price Range: $0.43

SS-5GL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
270 pcs
On Request
270 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SS-5GL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Differential Travel
Durability
Ingress Protection
Lead Style
Mounting Type
Operating Force
Operating Temperature
Overtravel
Release Force
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

SS-5GL Description

Short technical summary and product information.

The Omron SS-5GL is a subminiature basic switch offering high reliability and security. It is part of Omron's best-selling micro switch series, with a current rating of 5A at 125V AC and an SPDT contact form.



This switch features a straight lever actuator and a chassis mount type with solder lug terminals. It operates within a temperature range of -25°C to 85°C and has an ingress protection rating of IP40. The switch is designed for durability, with a specified lifespan of 30,000,000 operations.



Key mechanical specifications include an operating force of 50gf, a release force of 6.118gf, and an overtravel of 1.2mm. The differential travel is 0.8mm, and it has a minimum contact gap of 1mm, making it suitable for interlock applications.



The SS-5GL is RoHS3 compliant and has an MSL rating of 1. Its compact size and robust construction make it suitable for various industrial and electronic applications requiring a dependable switching solution.

SS-5GL Quick Information

Product Type: Subminiature Basic Switch
Canonical Name: Omron SS-5GL Subminiature Basic Switch
Subcategory: Basic Switch

SS-5GL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SS-5GL Estimated Pricing

Qty Low High
1+ $0.43 $0.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

SS-5GL Features

  • 5A 125V AC rating for power switching.
  • SPDT circuit for versatile control.
  • Straight lever actuator for actuation.
  • Chassis mount with solder lug terminals.
  • Durable with 30,000,000 operations.

SS-5GL Applications

  • Ideal for general purpose switching.
  • Suitable for industrial control panels.
  • Used in automation equipment.
  • Applicable in electronic device interfaces.

SS-5GL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Omron SS-5GL switch?

The Omron SS-5GL switch has a current rating of 5A at 125V AC.

What is the voltage rating for the SS-5GL switch?

The voltage rating for the SS-5GL switch is 125V.

What type of actuator does the SS-5GL switch have?

The SS-5GL switch features a straight lever actuator.

What is the operating temperature range for the SS-5GL switch?

The operating temperature range for the SS-5GL switch is -25°C to 85°C.

What is the circuit type of the SS-5GL switch?

The SS-5GL switch has an SPDT (Single Pole Double Throw) circuit.

How durable is the Omron SS-5GL subminiature basic switch?

The SS-5GL switch is designed for high durability, rated for 30,000,000 operations.
