| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

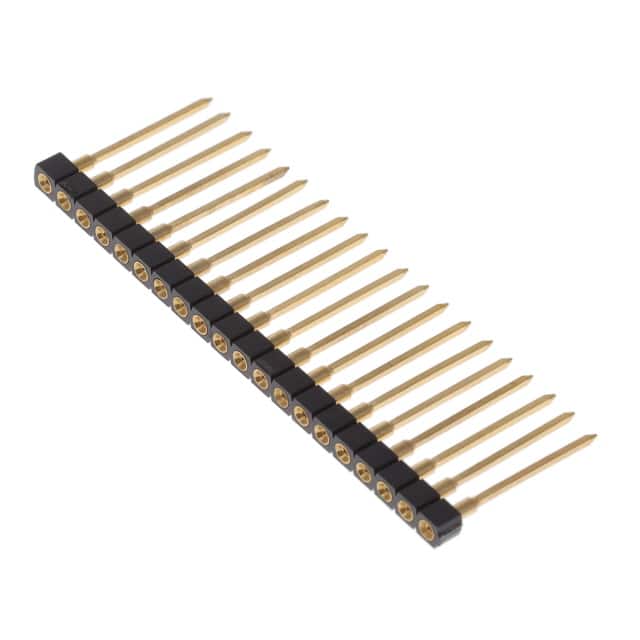

The Samtec SS-120-G-1B is a 20 position single row board to board receptacle designed for reliable interconnection in electronic assemblies. It uses female socket contacts with a gold finish (30.0µin) for corrosion resistance and consistent electrical performance.
This connector has a 2.54mm (0.100") pitch and an insulation height of 2.54mm (0.100"). It is through hole mounted with solder termination and uses a push-pull fastening mechanism. The black insulator is rated for an operating temperature range of -55°C to 125°C.
Typical applications include board to board connections in industrial, commercial, and test equipment where a compact single row receptacle is required. The contact length is 12.95mm (0.510").
| Qty | Low | High |
|---|---|---|
| 1+ | $9.08 | $9.08 |
| 100+ | $6.79 | $6.79 |
| 500+ | $6.36 | $6.36 |
| 1,000+ | $5.51 | $5.51 |
| 2,000+ | $5.16 | $5.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions, all loaded.
2.54mm (0.100").
Through hole with solder termination.
Gold, 30.0µin (0.76µm) thickness.
-55°C to 125°C.
