| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Release Force | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

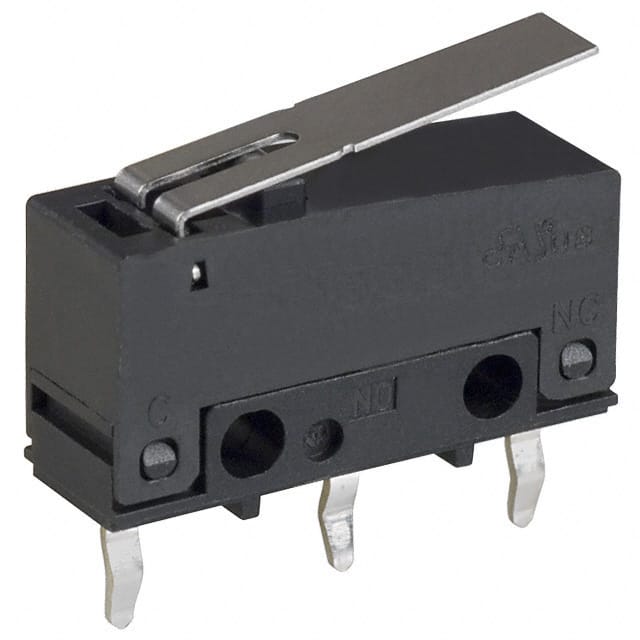

The Omron SS-01GLPD is a subminiature basic switch from the SS-P series, designed for reliable operation in various applications. This switch features a Single Pole Double Throw (SPDT) circuit configuration and is rated for 100mA at 125V AC or 30V DC.
Key mechanical and electrical specifications include a straight lever actuator, through hole mounting type, and PC pin termination style. It has an operating force of 51gf and a release force of 5.099gf, with a differential travel of 0.031" (0.8mm) and overtravel of 0.039" (1.0mm). The switch is designed for an operating temperature range of -25°C to 85°C and offers an Ingress Protection rating of IP40.
With an electrical life of 200,000 cycles, the SS-01GLPD is suitable for applications requiring frequent switching. The contact gap is 0.5mm, and it conforms to North American and European safety standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Omron SS-01GLPD switch has a current rating of 100mA (AC/DC).
The SS-01GLPD switch is rated for 125V AC and 30V DC.
The SS-01GLPD switch features a straight lever actuator.
The SS-01GLPD switch is designed for through hole mounting.
The operating temperature range for the SS-01GLPD switch is -25°C to 85°C.
The SS-01GLPD switch has an electrical life of 200,000 cycles.
The contact gap on the SS-01GLPD switch is 0.5mm.
