SPUJ193700
Alps Alpine
The Alps Alpine SPUJ193700 is a 4-pole push switch designed for PC board mounting with a 2.0mm travel and horizontal operation. It features a latching mechanism and straight terminal type.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
62 pcs
|
62 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operation | |
| SVHC Present | |
| Terminal Type |

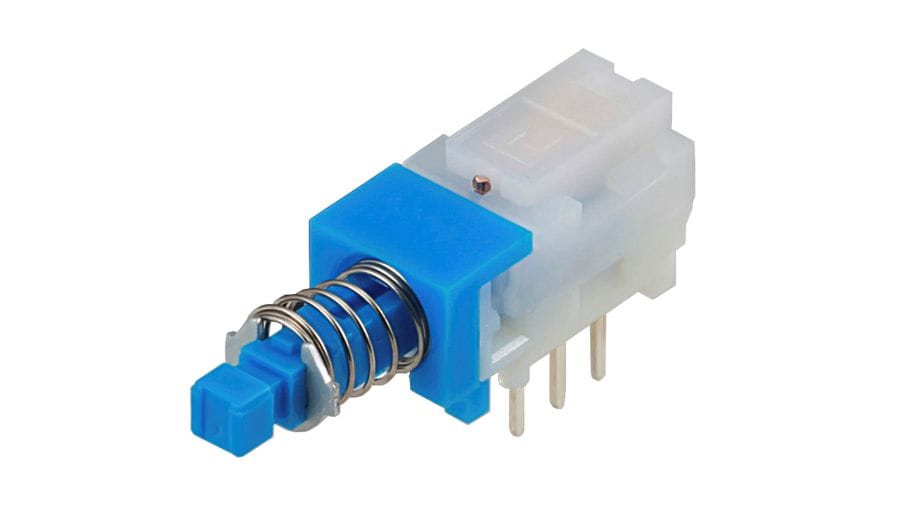

The ALPS CANNING SPUJ190900 is a push switch from the SPUJ Series, designed for horizontal operation with a 2.0mm travel distance. This model offers latching functionality and is mounted on a PC board with straight terminals.
Key electrical and mechanical specifications include 2 poles, an operating force of 1.5±1N, and a maximum rating of 0.1A at 30V DC. The dimensions are 15.2mm x 7.5mm x 8.8mm. The lever height is 5.0mm, supporting multi-circuit configurations.
This switch is suitable for applications such as Audio and TV equipment. It is part of a series that offers various configurations including different mounting methods and terminal types.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The travel distance is 2.0 mm.
The operating force is 1.5±1N.
It features latching operation.
It is mounted on a PC board.
The dimensions are 15.2mm x 7.5mm x 8.8mm.
The maximum rating is 0.1A 30V DC.
The lever height is 5.0 mm.
