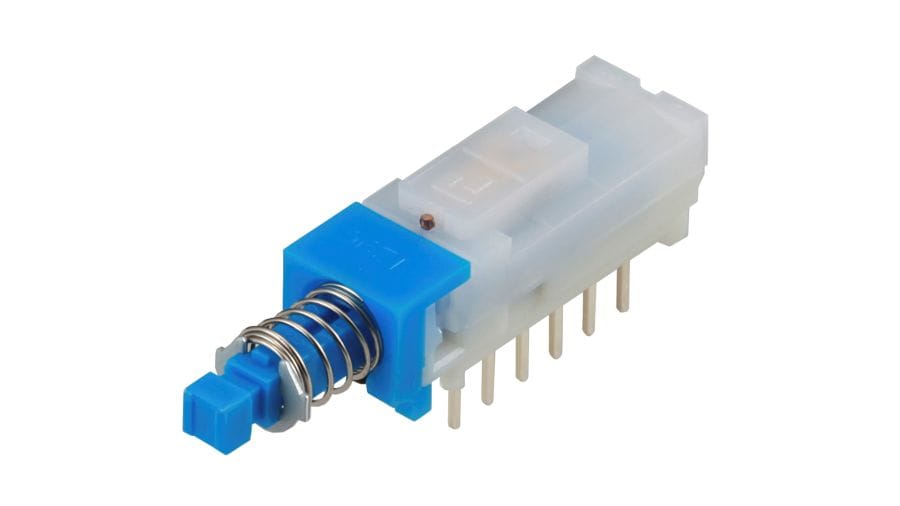

SPUJ193700 The Alps Alpine SPUJ193700 is a 4-pole push switch designed for PC board mounting with a 2.0mm travel and horizontal operation. It features a latching mechanism and straight terminal type.
Mfr Part #:

SPUJ193700

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SPUJ193700 is a 4-pole push switch designed for PC board mounting with a 2.0mm travel and horizontal operation. It features a latching mechanism and straight terminal type.
✓ Total Stock: 3,479 pcs

SPUJ193700 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
3,479 pcs
On Request
3479 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPUJ193700 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Mounting Type
Operating Force
Operation
SVHC Present
Terminal Type
View Similar Products (0)

SPUJ193700 Description

Short technical summary and product information.

The Alps Alpine SPUJ193700 is a horizontal type push switch from the SPUJ Series. It offers a travel of 2.0mm and a total travel of 3.0mm, with an operating force of 2.3±1N. This model features 4 poles and a latching operation.



The switch is designed for PC board mounting and has straight terminals. Its dimensions are 15.2mm in width, 7.5mm in depth, and 8.8mm in height. The maximum rating is 0.1A at 30V DC, and it has a lever height of 5.0mm.



This push switch is suitable for applications such as Audio/TV. The SPUJ series supports multi-circuit configurations.

SPUJ193700 Quick Information

Product Type: Push Switch
Series: SPUJ Series
Canonical Name: Alps Alpine SPUJ Series Push Switch
Subcategory: Push Switches

SPUJ193700 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SPUJ193700 Features

  • 4-pole latching push switch.
  • 2.0mm travel with 3.0mm total travel.
  • PC board mounting with straight terminals.
  • Rated for 0.1A 30V DC maximum.
  • Horizontal operating direction.

SPUJ193700 Applications

  • Ideal for multi-circuit selection in control panels.
  • Suitable for low-voltage DC power switching.
  • Used in PC board mounted mode selection switches.
  • Good for latching state indication circuits.

SPUJ193700 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the travel distance of the Alps Alpine SPUJ193700 push switch?

The travel distance is 2.0mm.

How many poles does the SPUJ193700 switch have?

The SPUJ193700 switch has 4 poles.

What is the operating force for the SPUJ193700?

The operating force is 2.3±1N.

What is the mounting method for the SPUJ193700?

The mounting method is PC board.

What is the maximum rating of the SPUJ193700 push switch?

The maximum rating is 0.1A 30V DC.

What are the dimensions of the Alps Alpine SPUJ193700 switch?

The dimensions are 15.2mm x 7.5mm x 8.8mm.
