| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Operating Temperature Range | |
| Output Voltage | |
| Power |

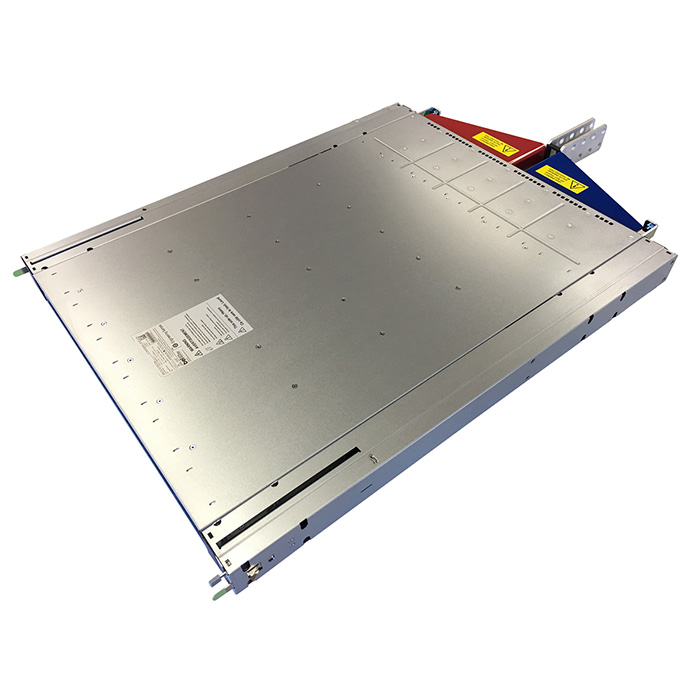

The SPSPFE3 Series power shelf from Bel Power Solutions offers robust rectification, system management, and power distribution capabilities. This unit is configurable with up to six hot-swap capable PFE3000-12-069RA AC/DC-DC power supplies, converting 3-phase AC mains power into a 12 VDC output.
Designed for high reliability and future expansion, the SPSPFE3-06G is compatible with the Open Compute Rack Design. It features a 14400W power capacity, an input voltage range of 200-480 VAC (240-380 VDC), and a stable 12 VDC output voltage. The operating temperature range is from 0 to +55°C.
An optional Network Attached Controller can be integrated for control functions and monitoring via a 10/100 MB Ethernet port, allowing direct connection to data center management networks. Protection features include Over Current Protection (OCP), Over Voltage Protection (OVP), and Over Temperature Protection (OTP). The shelf is RoHS compliant.
The SPSPFE3-06G power shelf has a power capacity of 14400 W.
The input voltage range is 200 to 480 VAC or 240 to 380 VDC.
The output voltage is 12 VDC.
The operating temperature range is 0 to +55 °C.
Yes, the SPSPFE3-06G is RoHS3 Compliant.
