| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Operating Temperature Range | |
| Output Voltage | |
| Power |

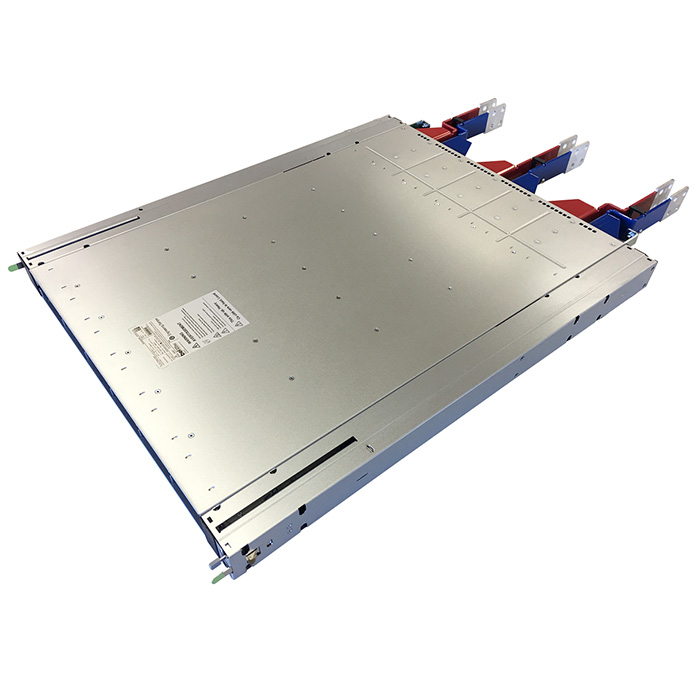

The SPSPFE3 Series power shelf from Bel Power Solutions is engineered for high-reliability applications, offering rectification, system management, and flexible power distribution. This unit can be configured with up to six hot-swap capable PFE3000-12-069RA AC/DC-DC power supplies. These supplies convert 3-phase AC mains power into a 12 VDC output, suitable for powering intermediate bus architectures (IBA) in demanding environments like high-performance servers, routers, and network switches. The shelf is compatible with the Open Compute Rack Design.
Key electrical specifications include a total power output of 14400W, an input voltage range of 200-480 VAC (or 240-380 VDC), and a main output voltage of 12 VDC. The operating temperature range is from 0 to +55°C. Features include over current protection (OCP), over voltage protection (OVP), and over temperature protection (OTP). An optional Network Attached Controller slot is available for control functions and monitoring via a 10/100 MB base Ethernet port, allowing direct connection to data center management networks. Communication can also be managed through I2C and Power Management Bus protocols.
The SPSPFE3-05G power shelf has a power output of 14400 W.
The input voltage range is 200 to 480 VAC or 240 to 380 VDC.
The output voltage is 12 VDC.
The operating temperature range is 0 to +55 °C.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
Yes, it features over current protection (OCP).
