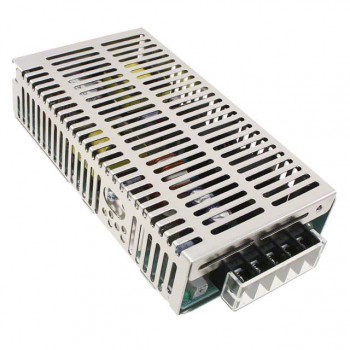

The Kaga Electronics USA SPN75-12S-M is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a maximum current of 7A, delivering a total power of 75W. The unit accepts a wide input voltage range of 85 to 264 VAC and includes features such as Power Factor Correction (PFC) and universal input capability.
With an efficiency of 82%, the SPN75-12S-M operates within a temperature range of 0°C to 60°C with derating. It offers an isolation voltage of 3 kV and is mounted via chassis mount. The dimensions of the converter are 162.0mm x 88.0mm x 38.5mm. It is approved by CE, CSA, cUL, and UL agencies, indicating compliance with various safety standards.
This converter is suitable for various commercial applications requiring a reliable power supply. Its robust design and broad input voltage range make it a versatile component for integration into different systems.
85-264 VAC.
Single 12V output at up to 7A, 75W.
0°C to 60°C with derating.
Enclosed chassis-mount package supplied in bulk.
82%.
3 kV.
CE, CSA, cUL, and UL.
