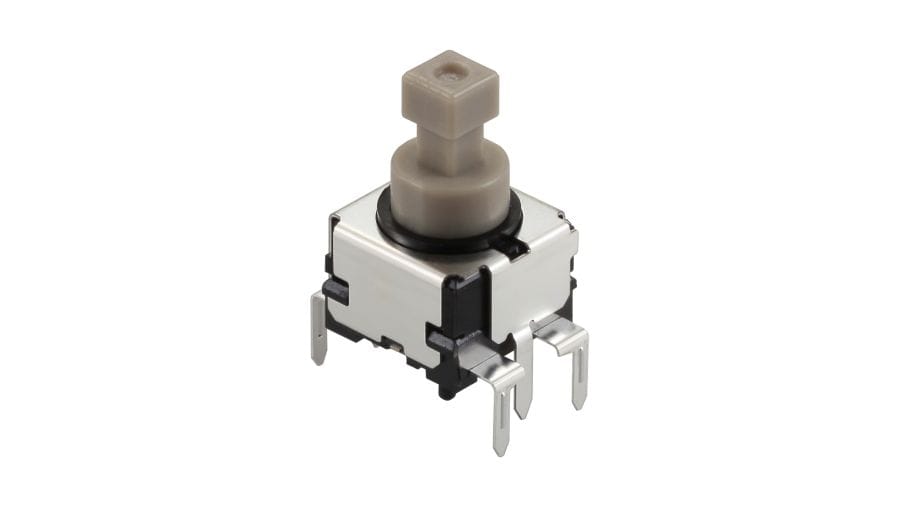

SPEF110200 The Alps Alpine SPEF110200 is a 1.5mm travel vertical type push switch designed for PC board mounting. It features a latching operation and a 5N operating force.
Mfr Part #:

SPEF110200

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SPEF110200 is a 1.5mm travel vertical type push switch designed for PC board mounting. It features a latching operation and a 5N operating force.
✓ Total Stock: 7,350 pcs
$ Price Range: $0.75

SPEF110200 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
7,350 pcs
On Request
7350 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPEF110200 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Mounting Type
Operating Force
Operating Voltage
Operation
Positions
Storage Temperature
Tape & Reel
Terminal Type
View Similar Products (0)

SPEF110200 Description

Short technical summary and product information.

The Alps Alpine SPEF110200 is a push switch from the SPEF Series, featuring a 1.5mm travel and vertical operation. This component is designed for PC board mounting and utilizes a reflow terminal type, supporting surface mounting with lead-free solder.



Key electrical specifications include a 1-pole, 2-position configuration with non-shorting changeover timing. The operating force is rated at 5N, and it supports a maximum voltage of 14.5V DC with a 1A current rating. The switch offers an initial contact resistance of 10 mΩ, which increases to a maximum of 20 mΩ after its operational life of at least 100,000 cycles.



Applications for the SPEF110200 include automotive uses such as hazard lights and map lamps. The dimensions of the switch are 9.4mm (W) x 9.0mm (D) x 6.9mm (H).

SPEF110200 Quick Information

Product Type: Push Switch
Series: SPEF Series
Canonical Name: Alps Alpine SPEF Series Push Switch
Subcategory: Push Switch

SPEF110200 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SPEF110200 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SPEF110200 Features

  • 1.5mm travel vertical type push switch.
  • Latching operation with 2 positions.
  • PC board mounting with reflow terminals.
  • Rated for 14.5V DC and 1A.
  • Suitable for automotive applications.

SPEF110200 Applications

  • Used in automotive hazard lights.
  • Suitable for automotive map lamps.
  • Designed for PC board integration.
  • Ideal for latching switch functions.

SPEF110200 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the travel distance of the SPEF110200 switch?

The SPEF110200 switch has a travel distance of 1.5mm.

What is the operating force for the SPEF110200 switch?

The operating force for the SPEF110200 switch is 5N.

How is the SPEF110200 switch mounted?

The SPEF110200 switch is designed for PC board mounting.

What is the maximum voltage rating for the SPEF110200 switch?

The SPEF110200 switch has a maximum voltage rating of 14.5V DC.

What is the expected operating life of the SPEF110200 switch?

The SPEF110200 switch has an operating life of at least 100,000 cycles with the rated load.
