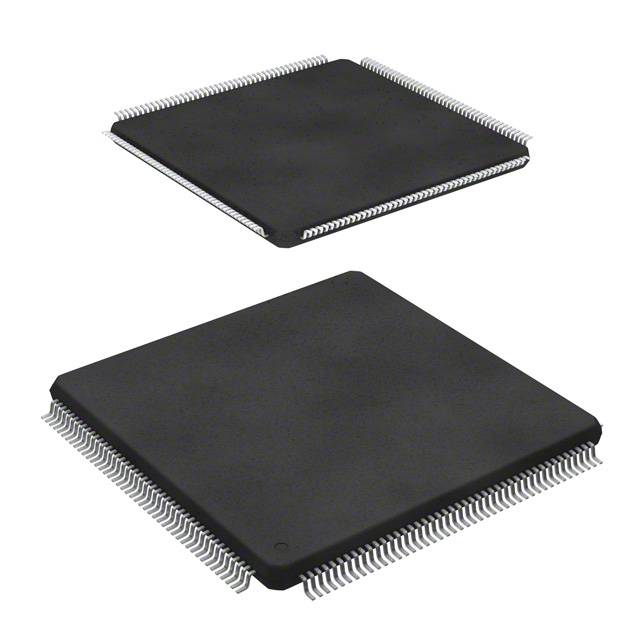

SPC560B64L7C6E0Y The STMicroelectronics SPC560B64L7C6E0Y is a 32-bit microcontroller featuring a 64MHz e200z0h core. It offers 1.5MB of FLASH program memory and 96K x 8 RAM.
Mfr Part #:

SPC560B64L7C6E0Y

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics SPC560B64L7C6E0Y is a 32-bit microcontroller featuring a 64MHz e200z0h core. It offers 1.5MB of FLASH program memory and 96K x 8 RAM.
✓ Total Stock: 200 pcs
$ Price Range: $6.40

SPC560B64L7C6E0Y Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPC560B64L7C6E0Y Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

SPC560B64L7C6E0Y Description

Short technical summary and product information.

The SPC560B64L7C6E0Y from STMicroelectronics is a high-performance 32-bit microcontroller designed for demanding automotive applications. It operates at a speed of 64MHz, powered by the e200z0h core processor.



This MCU is equipped with substantial memory, including 1.5MB of FLASH program memory and 96K x 8 RAM, suitable for complex embedded systems. It features 149 I/O ports for extensive connectivity and supports various communication protocols such as CANbus, I2C, LINbus, SCI, SPI, and UART/USART.



The device is housed in a compact 176-LQFP surface mount package, making it suitable for high-density PCB designs. It operates within a wide supply voltage range of 3V to 5.5V and has an operating temperature range of -40°C to 125°C (TA).



Key peripherals include DMA, LVD, POR, PWM, and WDT. Data conversion is handled by A/D converters with 53 channels and 10/12-bit resolution. The internal oscillator simplifies design by reducing the need for external components. This microcontroller is automotive grade, ensuring reliability in harsh environments.

SPC560B64L7C6E0Y Quick Information

Product Type: Microcontroller
Series: SPC56
Canonical Name: SPC560B64L7C6E0Y Microcontroller
Subcategory: Embedded

SPC560B64L7C6E0Y Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SPC560B64L7C6E0Y Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

SPC560B64L7C6E0Y Features

  • 32-bit e200z0h core processor
  • 64MHz operating speed
  • 1.5MB FLASH program memory
  • 96K x 8 RAM size
  • 176-LQFP surface mount package

SPC560B64L7C6E0Y Applications

  • Automotive powertrain control
  • Chassis control systems
  • Body electronics functions
  • Automotive safety systems
  • Vehicle telematics applications

SPC560B64L7C6E0Y FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the SPC560B64L7C6E0Y?

The operating voltage range is 3V to 5.5V.

What package type is the SPC560B64L7C6E0Y microcontroller supplied in?

The SPC560B64L7C6E0Y is supplied in a 176-LQFP package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 125°C (TA).

Is the SPC560B64L7C6E0Y RoHS compliant?

Yes, it is RoHS3 Compliant.
