| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
105,000 pcs
|
105000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,100 pcs
|
3100 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
406 pcs
|
406 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
213 pcs
|
213 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |
The SP1004U-ULC-04UTG is a TVS diode array from Littelfuse designed for general purpose ESD protection. It features 4 unidirectional channels with a typical reverse standoff voltage of 9.2V. The device can handle a peak pulse current of 2A under the 8/20µs waveform condition.
With an ultra-low capacitance of 0.2pF at 1MHz, this diode array is suitable for high-speed data line protection where signal integrity is critical. It does not include power line protection, indicating it is intended for signal line applications.

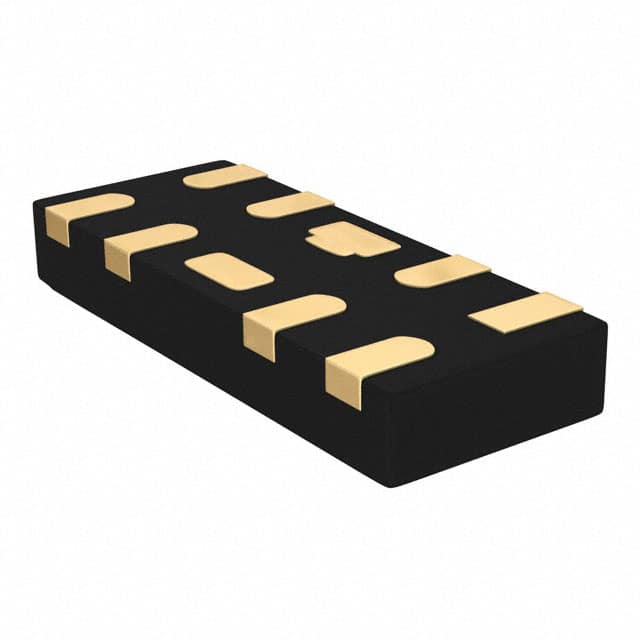

The component is housed in a compact 10-XFDFN package (supplier device package 1004/10DFN, 2.5x1.0mm) and supports surface mount assembly. It operates over a temperature range of -40°C to 125°C, making it suitable for industrial and automotive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.97 | $0.97 |
| 10+ | $0.60 | $0.60 |
| 100+ | $0.40 | $0.40 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.28 | $0.28 |
| 3,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical reverse standoff voltage is 9.2V.
It has 4 unidirectional channels.
The peak pulse current is 2A under the 8/20µs waveform.
The capacitance is 0.2pF at 1MHz.
It comes in a 10-XFDFN surface mount package (supplier device package 1004/10DFN, 2.5x1.0mm).
The operating temperature range is -40°C to 125°C.
No, it does not include power line protection; it is intended for signal line ESD protection.
