Mfr Part #:

SN74CBTLV3861DGVR

Mfr Name: NA

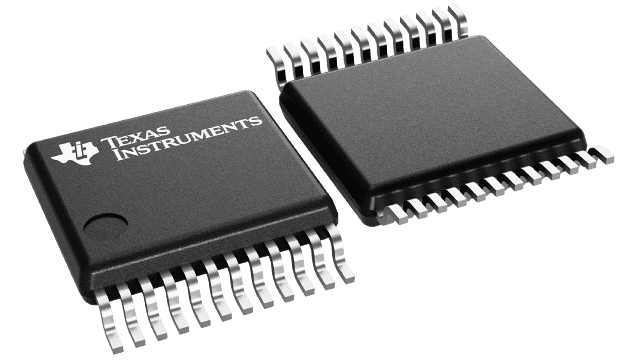

The SN74CBTLV3861DGVR is a 10-channel bus switch offering 200 MHz bandwidth and low on-state resistance of 5 ohms typical.

✓ Total Stock: 2,000 pcs

SN74CBTLV3861DGVR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	2,000 pcs On Request	2000 pcs	On Request	1	On Request	On Request	06+	On Request	On Request

SN74CBTLV3861DGVR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	NA
Bandwidth	200 MHz
Lead Style	Gull-Wing
Tape & Reel	Yes

View Similar Products (0)

SN74CBTLV3861DGVR Description

Short technical summary and product information.

The SN74CBTLV3861DGVR is a 10-channel bus switch designed for high-speed signal routing. It features a typical on-state resistance of 5 ohms and a bandwidth of 200 MHz, making it suitable for switching digital signals in various logic systems. The device operates with input voltages as low as 0V. It is commonly used in data communication and bus isolation applications.

SN74CBTLV3861DGVR Quick Information

Product Type: Bus Switch

Series: SN74CBTLV3861

Canonical Name: SN74CBTLV3861DGVR Bus Switch

Subcategory: Bus Switch

SN74CBTLV3861DGVR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SN74CBTLV3861DGVR Features

10-channel 1:1 SPST bus switch.
Typical on-state resistance of 5000 mOhm.
200 MHz bandwidth for high-speed switching.
Rail-to-rail switching on data I/O ports.
Ioff supports partial-power-down mode operation.

SN74CBTLV3861DGVR Applications

10-bit high-speed bus switching
Low on-state resistance bus isolation
Partial-power-down mode bus switching
Rail-to-rail data I/O switching
Flow-through architecture PCB routing

SN74CBTLV3861DGVR FAQs

5 frequently asked questions generated from this part’s specifications.

How many channels does the SN74CBTLV3861DGVR have?

It has 10 channels.

What is the bandwidth of this bus switch?

200 MHz.

What is the typical on-state resistance?

5 ohms (5000 mOhm).

What is the maximum on-state resistance?

40 ohms (40000 mOhm).

What is the minimum input voltage?

0V.
