| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,616 pcs
|
3616 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Architecture | |
| Automotive Grade | |
| Bandwidth | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature Range | |
| Output Current | |
| SVHC Present | |
| Slew Rate | |
| Storage Temperature | |
| Tape & Reel |
The THS4032MDGNREP from Texas Instruments is an enhanced-product, dual-channel, low-noise voltage-feedback amplifier designed for high-speed applications. It features a 200 MHz gain bandwidth product and a 100 V/µs slew rate, making it suitable for demanding electronic designs.
This amplifier operates with a total supply voltage ranging from 10 V to 30 V and provides a low input offset voltage of 2 mV maximum at 25°C. Its ultralow voltage noise density of 1.6 nV/√Hz and very low distortion (THD = -72 dBc at 1 MHz with RL = 150 Ω) ensure signal integrity.
The THS4032MDGNREP is available in an HVSSOP (DGN) package and supports a wide operating temperature range of -55°C to 125°C. Its design considerations include support for defense, aerospace, and medical applications, with a controlled baseline and extended product life cycle.
Key electrical characteristics include a minimum stable gain of 1 V/V, a typical quiescent current per channel of 8.5 mA, and a typical output current drive of 90 mA. The device also boasts a high Common Mode Rejection Ratio (CMRR) of 95 dB.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical gain bandwidth product is 200 MHz.
The total supply voltage range is 10 V to 30 V.
The operating temperature range is -55°C to 125°C.

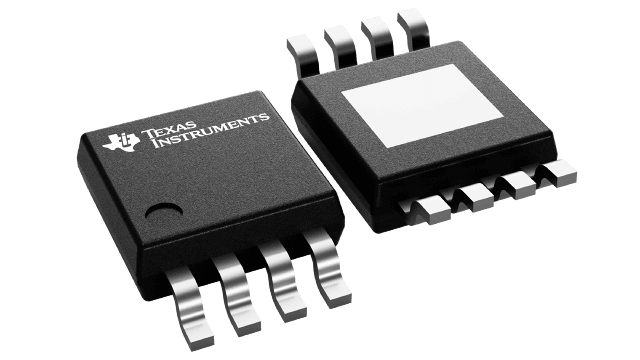

It is available in an HVSSOP (DGN) package.
The typical slew rate is 100 V/µs.
It has 2 channels.
