| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Material | |
| Mounting Type | |
| Pitch | |
| Product Type |
The PEM SMTSO-3.6-6ET is a ReelFast® surface mount standoff from PEM's SMTSO product family. Constructed from lead-free carbon steel and finished with electro-plated tin (ASTM B 545, Class A), this standoff is designed for reliable performance in electronic assemblies.

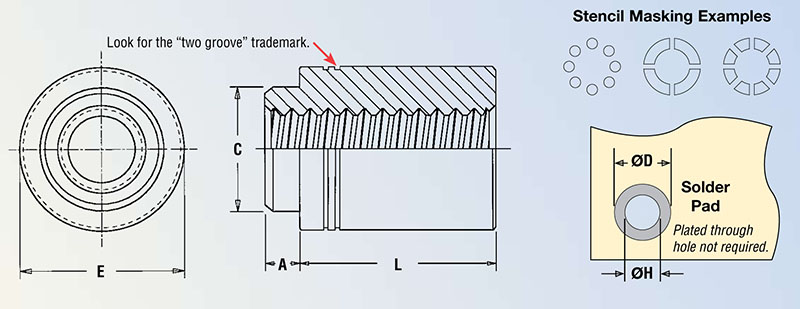

Key mechanical specifications include a maximum 'A' dimension of 1.53mm, a length (L) of 6mm with a tolerance of ±0.13mm, and a maximum 'C' dimension of 5.28mm. The minimum solder pad diameter (øD) is 7.77mm, with a pitch of 12mm. The through-hole diameter is specified as 3.6mm with tolerances of +0.10 -0.08mm. This standoff is suitable for use in sheet thicknesses of 0.062 inches and single-layer FR-4 materials.
Designed for surface mount technology (SMT), the SMTSO-3.6-6ET offers a secure and efficient mounting solution for printed circuit boards. It is supplied on reels with 650 parts per reel, facilitating automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 mm ±0.13 mm
Lead-free carbon steel with an electro-plated tin finish.
Surface mount.
No, it is unthreaded.
650 parts per reel.
0.062 inches.
7.77 mm.
