| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing |

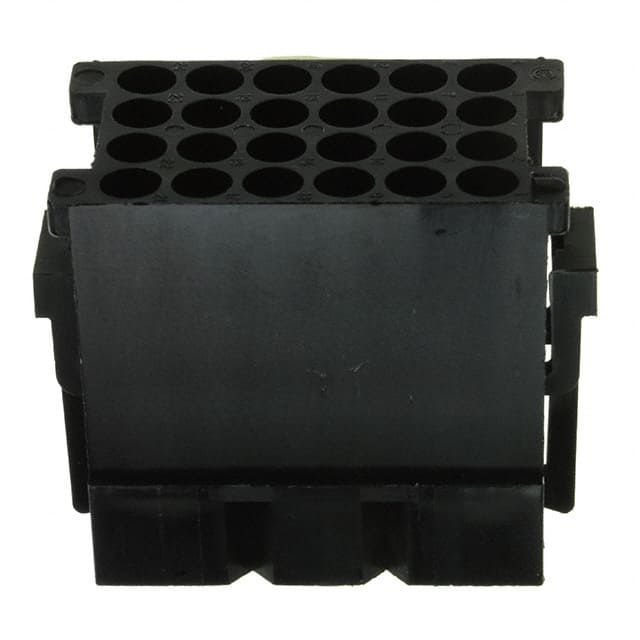

This product is a rectangular connector housing from Souriau-Sunbank by Eaton, part number SMS24P-1. It is a plug-style housing designed for use with male pin contacts. The housing features a latch holder fastening mechanism for secure mating.
The housing accommodates 24 positions arranged in 4 rows with a pitch of 5.08mm (0.200") and row spacing of 5.08mm. It is designed for free hanging (in-line) mounting and uses crimp termination for the contacts. The housing is black in color.
The operating temperature range is -40°C to 105°C, making it suitable for a variety of environmental conditions. Compliance includes RoHS3, REACH unaffected, and MSL 1 (unlimited). This housing is commonly used in rectangular connector systems for wire-to-wire or wire-to-board applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.68 | $9.68 |
| 100+ | $8.22 | $8.22 |
| 500+ | $7.97 | $7.97 |
| 1,000+ | $7.76 | $7.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SMS24P-1 has 24 positions.
The pitch is 5.08mm (0.200").
It has 4 rows.
Free hanging (in-line) mounting.
-40°C to 105°C.
Latch holder fastening.
Crimp termination.
