| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Halogen Free | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| SVHC Present | |
| Shield Termination | |
| Termination Style |

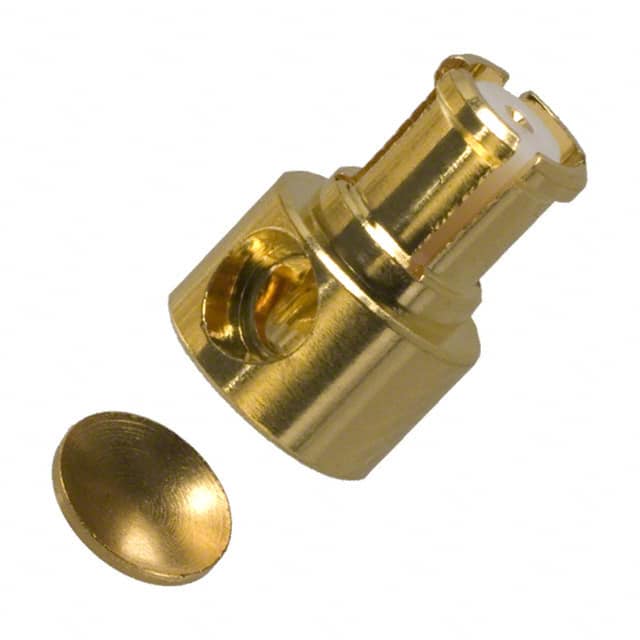

This is an SMP coaxial connector plug from Amphenol RF. It features a female socket contact, 50 Ohm impedance, and operates up to 26.5 GHz. The connector uses a snap-on fastening mechanism and is designed for free-hanging (in-line) right-angle mounting. The center contact is made of beryllium copper, and the housing is gold plated. Termination is solder for both contact and shield. It is designed for use with RG-405 (.086 semi-rigid) cable. This connector is suitable for high-frequency applications in telecommunications, test equipment, and microwave systems. The compact SMP design supports blind-mate and board-to-board connections. The right-angle configuration allows for space-saving in tight layouts. The gold finish provides corrosion resistance and reliable conductivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.23 | $8.23 |
| 10+ | $6.99 | $6.99 |
| 25+ | $6.55 | $6.55 |
| 50+ | $6.24 | $6.24 |
| 100+ | $5.94 | $5.94 |
| 250+ | $5.57 | $5.57 |
| 500+ | $5.31 | $5.31 |
| 1,000+ | $5.05 | $5.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
26.5 GHz.
SMP plug with a female socket contact.
RG-405 (.086 semi-rigid) cable.
Free hanging (in-line), right angle.
Solder for both contact and shield.
RoHS3 compliant (unverified).
