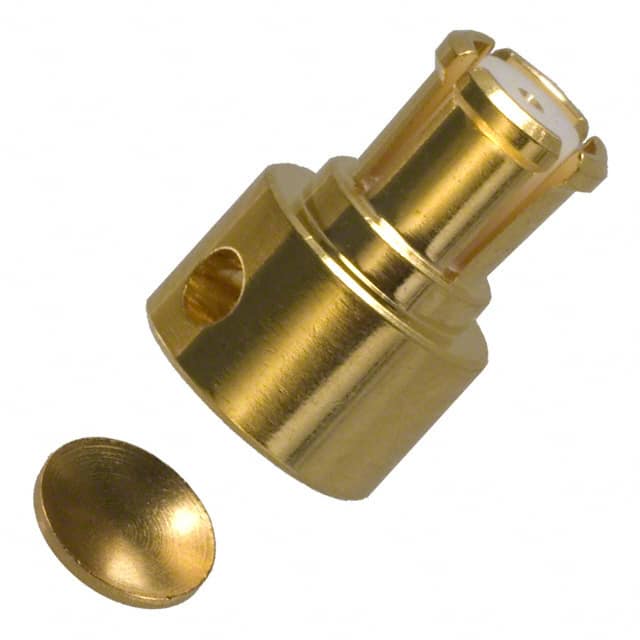

SMP-FR-C06 SMP-FR-C06 is a 50 Ohm SMP plug connector from Amphenol RF with a female socket, right angle orientation, and solder termination. It supports frequencies up to 26.5 GHz and is designed for free hanging (in-line) mounting.
Mfr Part #:

SMP-FR-C06

Available from 1 distributors
Mfr Name: Amphenol RF
Amphenol RF
SMP-FR-C06 is a 50 Ohm SMP plug connector from Amphenol RF with a female socket, right angle orientation, and solder termination. It supports frequencies up to 26.5 GHz and is designed for free hanging (in-line) mounting.
✓ Total Stock: 5 pcs
$ Price Range: $19.54 - $30.29

SMP-FR-C06 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMP-FR-C06 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
View Similar Products (0)

SMP-FR-C06 Description

Short technical summary and product information.

This is an SMP coaxial connector plug from Amphenol RF, featuring a female socket contact. It is designed for 50 Ohm impedance and operates up to 26.5 GHz, making it suitable for high-frequency RF applications.



The connector has a right angle orientation and is intended for free hanging (in-line) mounting. It uses a snap-on fastening mechanism for quick and secure mating. The center contact is made of beryllium copper, and both contact and shield terminations are solder type.



The housing is gold colored, and the connector is designed for use with 0.047" semi-rigid cable. It is RoHS3 compliant and has an MSL of 1 (unlimited). This connector is ideal for applications requiring reliable RF connections in tight spaces.

SMP-FR-C06 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: SMP
Canonical Name: SMP Connector Plug, Female Socket, 50 Ohm, Right Angle, Free Hanging
Subcategory: SMP Connector

SMP-FR-C06 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

SMP-FR-C06 Estimated Pricing

Qty Low High
1+ $30.29 $30.29
10+ $25.75 $25.75
25+ $24.13 $24.13
50+ $22.98 $22.98
100+ $21.89 $21.89
300+ $20.26 $20.26
500+ $19.54 $19.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMP-FR-C06 Features

  • 50 Ohm impedance for RF signal integrity.
  • Operates up to 26.5 GHz frequency.
  • Right angle orientation for compact designs.
  • Snap-on fastening for quick mating.
  • Solder termination for reliable connections.

SMP-FR-C06 Applications

  • Used in high-frequency RF test equipment.
  • Ideal for telecommunications infrastructure.
  • Suitable for aerospace and defense systems.
  • Applied in microwave module interconnects.

SMP-FR-C06 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the SMP-FR-C06?

50 Ohm.

What is the maximum operating frequency?

26.5 GHz.

What type of connector is the SMP-FR-C06?

SMP plug with female socket.

What is the mounting style?

Free hanging (in-line), right angle.

What fastening mechanism does it use?

Snap-on.

What is the contact termination method?

Solder.

Is the SMP-FR-C06 RoHS compliant?

Yes, it is listed as RoHS3 compliant.
