| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
550 pcs
|
550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature |

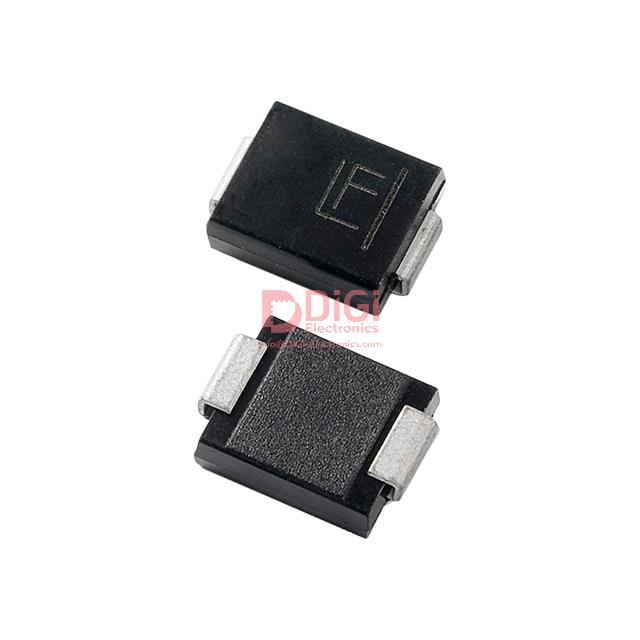

The Littelfuse SMCJ5.0CA-HR is a bidirectional TVS Diode designed for transient voltage suppression. It features a 5V reverse standoff voltage and a minimum breakdown voltage of 6.4V. The maximum clamping voltage is 9.2V at a peak pulse current of 163A (10/1000µs).
This TVS diode has a peak pulse power rating of 1500W. It is suitable for general purpose applications and is available in a surface mount DO-214AB (SMCJ) package. The operating temperature range is -65°C to 150°C.
Packaged in tape and reel, the SMCJ5.0CA-HR is designed for efficient integration into automated assembly processes. Its robust construction and electrical characteristics make it a reliable choice for protecting sensitive electronic circuits from voltage transients.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V.
6.4V minimum.
9.2V maximum at 163A.
163A (10/1000µs).
1500W.
-65°C to 150°C.
DO-214AB surface mount.
