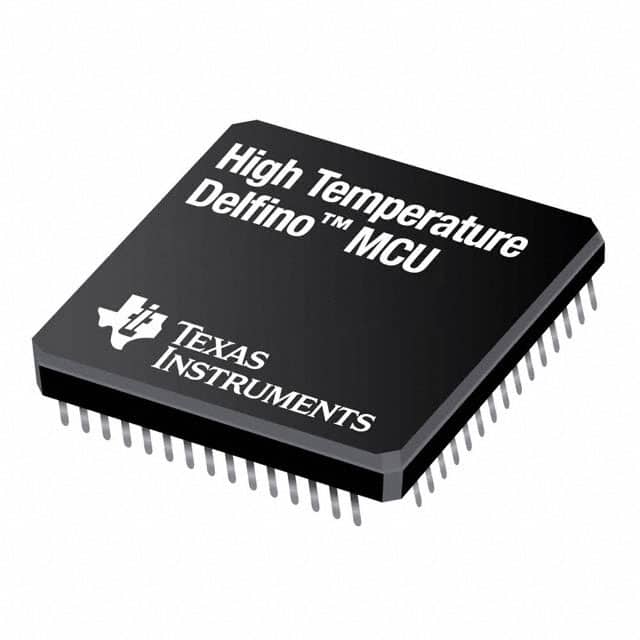

The Texas Instruments SM320F28335GBS is a high-performance 32-bit microcontroller based on the C28x core, designed for demanding applications. It operates at speeds up to 150 MHz, with a reduced frequency of 100 MHz at the maximum operating temperature of 210°C.
This MCU is equipped with 512KB of Flash program memory and 34KB of RAM, along with a 12-bit Analog-to-Digital Converter (ADC) featuring 16 channels. Key peripherals include DMA, POR, PWM, and WDT, and it supports various communication interfaces such as CANbus, EBI/EMI, I²C, McBSP, SCI, SPI, and UART/USART.
With a wide operating temperature range of -55°C to 210°C, the SM320F28335GBS is suitable for high-temperature environments. It features a 32-bit single-core architecture and includes a Floating-Point Unit (FPU32).
The device is available in a 181-pin CPGA package with an exposed pad, designed for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $405.57 | $405.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to 210°C.
The processor speed is up to 150 MHz at -55°C to 125°C, and up to 100 MHz at 210°C.
It has 512KB of Flash program memory.
The package is a 181-pin CPGA with an exposed pad, designed for through-hole mounting.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
