| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
134 pcs
|
134 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact System | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Insertion Depth (Minimum/Maximum) | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Pitch | |
| Prop 65 | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

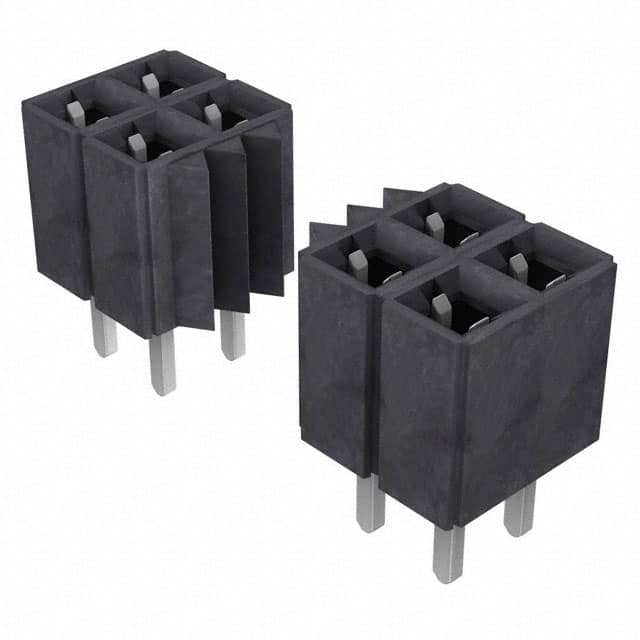

The SLW-105-01-T-D is a low profile socket strip receptacle from Samtec's SLW series. It features 10 positions arranged in 2 rows with a 0.100" (2.54mm) pitch, making it suitable for board-to-board stacking applications. The connector uses a through hole mounting style and solder termination, with a push-pull fastening mechanism for secure mating.
This receptacle is rated for a current of 5.2A per pin (with 2 pins powered) and a voltage of 406 VAC. It operates over a temperature range of -55°C to +105°C when mated with tin-plated contacts. The insulator is made of black G.F. polyester, and the contacts are phosphor bronze with a tin finish. The contact system is Samtec's Tiger Buy™, ensuring reliable performance.
The part has an insulation height of 4.57mm (0.180") and a mated stacking height of 6.09mm. The insertion depth ranges from 2.16mm to 2.92mm. It is not lead-free solderable and requires lead wave soldering only. The connector is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
Typical applications include board-to-board interconnections in various electronic systems where a low profile, high-density connector is required. The SLW series mates with a variety of Samtec header strips such as TSW, TLW, and MTSW series.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.38 | $1.38 |
| 100+ | $1.15 | $1.15 |
| 500+ | $1.05 | $1.05 |
| 1,000+ | $1.00 | $1.00 |
| 5,000+ | $0.73 | $0.73 |
| 10,000+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions, all loaded, in 2 rows.
0.100" (2.54mm).
5.2A per pin with 2 pins powered.
406 VAC.
Through hole.
-55°C to +105°C with tin plating.
Tin.
