| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

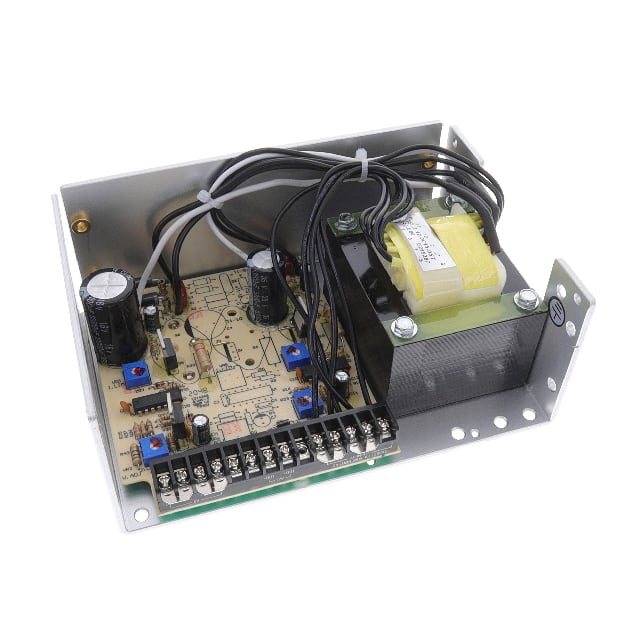

This SolaHD SLD-12-3015-05T is an AC/DC converter designed for ITE (Commercial) applications. It features an open-frame construction and chassis mount type, making it suitable for integration into various systems.
The converter delivers a total power of 33W, with a primary output voltage of 12V and a current rating of 1.5A. It supports adjustable output and includes remote sense functionality for precise voltage regulation. The operating temperature range is from 0°C to 50°C.
Key specifications include a 2-output design, CSA and cURus approval agencies, and dimensions of 177.8mm x 123.7mm x 69.9mm. The RoHS status is compliant, and the Moisture Sensitivity Level (MSL) is 1.
The converter provides dual outputs: 5V and 12V.
The total power is 33W.
The operating temperature range is 0°C to 50°C.
Length 177.8mm, width 123.7mm, height 69.9mm.
It is designed for chassis mount installation.
Adjustable output and remote sense.
Approved to CSA and cURus standards.
