| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37,820 pcs
|
37820 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature Range | |
| Package Quantity | |
| Tape Width |

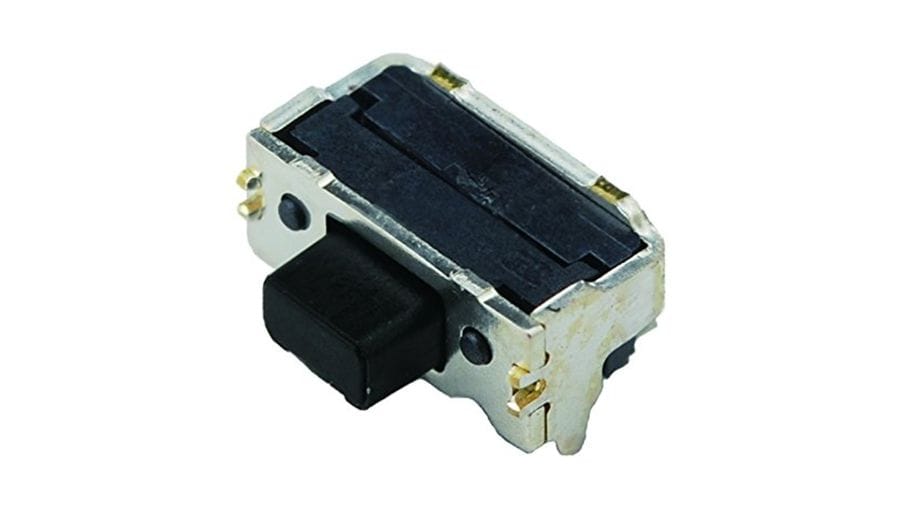

The Alps Alpine SKTDLDE010 is a surface mount Tact Switch™ belonging to the SKTD Series. Designed for applications requiring a sharp feeling, this component offers a compact size of 3.9x2.9x1.55mm.
Key electrical and mechanical specifications include an operating force of 1.6N, a travel of 0.15mm, and an operating life of 200,000 cycles. The initial contact resistance is rated at a maximum of 500mΩ. This switch is compliant with IP6X equivalent and IPX7 standards for dust and water protection.
Environmental testing includes cold (-40°C for 96h), dry heat (85°C for 96h), and damp heat (60°C, 90-95% RH for 96h) conditions. The operating temperature range is -30°C to +85°C.
Applications for this tactile switch include mobile devices, smartphones, tablets, headsets, wearables, notebooks, peripherals, and healthcare equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The absolute maximum rating is 12 V DC, and the minimum rating is 1 V DC.
The switch is supplied in tape and reel packaging with a12 mm tape width,4,500 pieces per reel, for surface mount assembly.
The operating temperature range is -30 °C to +85 °C.
The operating force is 1.6 N.
The operating life is 200,000 cycles.
The switch is rated IP6X equivalent dust-proof and IPX7 water-proof.
The initial contact resistance is 500 mΩ maximum.
