| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70,636 pcs
$0.48
|
70636 pcs |
$0.48
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Mounting Type | |
| Tape & Reel |

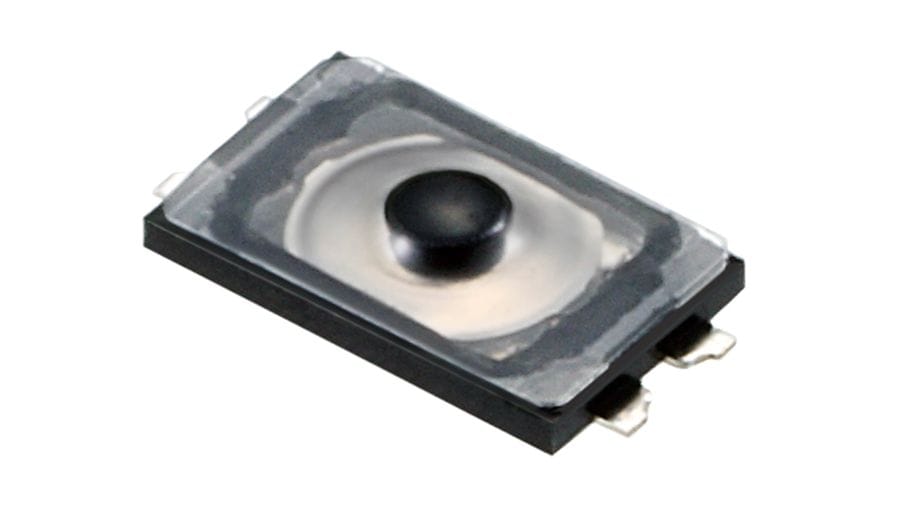

The Alps Alpine SKTAACE010 is a compact, surface-mount tact switch from the SKTA series, designed for applications requiring a small footprint and reliable operation. This switch features a sharp feeling operation and a low-profile design with a height of 0.53mm.
Key electrical and mechanical specifications include an operating force of 1.0N, a travel of 0.11mm, and an initial contact resistance of 500mΩ maximum. It is rated for an operating life of 300,000 cycles. The dimensions are 2.6x1.6x0.53mm.
This tact switch is compliant with IP6X equivalent for dust resistance and IPX7 for water resistance, making it suitable for demanding environments. Applications include mobile devices such as smartphones and tablets, wearables, notebooks, and healthcare equipment.
The SKTAACE010 is supplied in a standard package of 20,000 pieces on tape and reel, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical operating force for the SKTAACE010 is 1.0N.
The typical travel distance for the SKTAACE010 is 0.11mm.
The SKTAACE010 tact switch has a rated operating life of 300,000 cycles.
The dimensions of the SKTAACE010 tact switch are 2.6x1.6x0.53mm.
The SKTAACE010 tact switch is rated IP6X equivalent for dust resistance and IPX7 for water resistance.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is Level 1 Unlimited.
