| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
576,000 pcs
|
576000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9,040 pcs
|
9040 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature Range | |
| Tape Width | |
| Type |

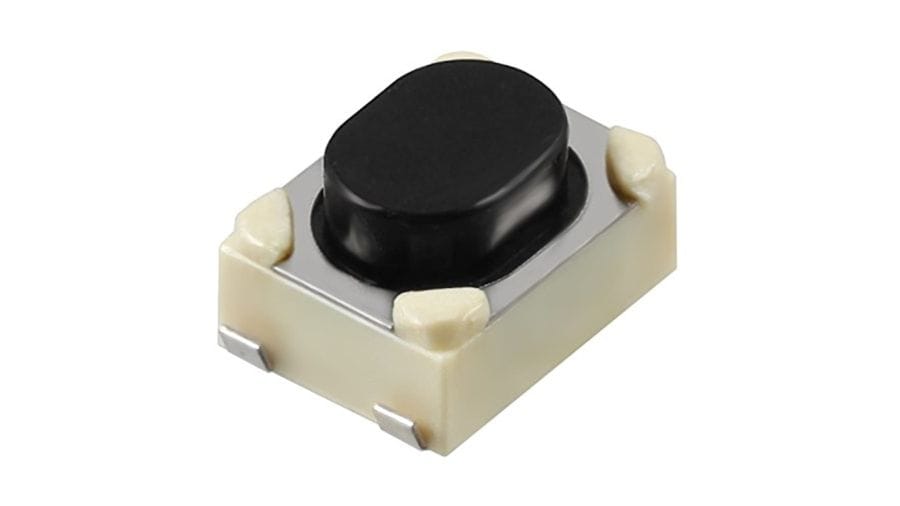

The Alps Alpine SKRPADE010 is a compact, high operating force TACT Switch™ designed for surface mount applications. Part of the SKRP Series, this switch features a sharp feeling type with a 4.0N operating force and a travel of 0.2mm. It boasts a high operating life of 100,000 cycles and an initial contact resistance of 500mΩ max.
With dimensions of 4.2 x 3.2 x 2.5mm, the SKRPADE010 is suitable for space-constrained designs. It operates within a temperature range of -40°C to +90°C and has electrical ratings including absolute maximum ratings of 50mA/16V DC and a minimum DC rating of 10μA/1V DC. The insulation resistance is 100MΩ min. at 100V DC, and it has a voltage proof of 250V AC for 1 minute.
Environmental testing includes vibration resistance and exposure to cold, dry heat, and damp heat conditions for 1,000 hours. The switch is supplied on tape and reel, with a standard package quantity of 4,000 pieces and a tape width of 12mm. Soldering conditions for reflow are specified, with a maximum surface temperature not exceeding 260°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating force is 4.0 N.
The dimensions are 4.2 x 3.2 x 2.5 mm.
-40°C to +90°C.
It is rated for 100,000 cycles.
The initial contact resistance is 500 mΩ max.
It is RoHS3 compliant.
It comes in tape packaging with a width of 12 mm, with 4,000 pieces per standard package.
