| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
52,000 pcs
|
52000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
3,450 pcs
|
3450 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature Range | |
| Tape Width |

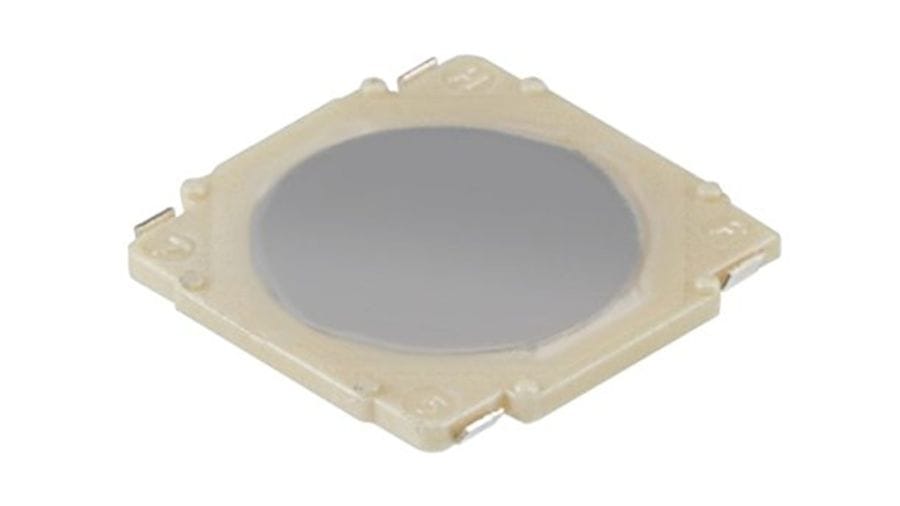

The Alps Alpine SKRMABE010 is a compact, thin-profile TACT Switch™ designed for surface mounting. Part of the SKRM Series, it features a sharp feeling type with an operating force of 2.55N and a travel distance of 0.2mm.
This tactile switch boasts a high operating life of 100,000 cycles and a low initial contact resistance of 100mΩ maximum. Its dimensions are 4.5mm x 4.5mm x 0.4mm, making it suitable for space-constrained applications.
The operating temperature range is -40℃ to +85℃. Electrical specifications include an absolute maximum rating of 50mA at 12V DC and a minimum rating of 10μA at 1V DC. Insulation resistance is 100MΩ minimum, and voltage proof is 100V AC for 1 minute.
Applications for this switch include mobile devices, headsets, notebooks, and peripherals. It is designed for reflow soldering with specific temperature profiles to ensure optimal performance and durability.
The operating force is 2.55N.
The travel distance is 0.2mm.
The operating life is 100,000 cycles.
The dimensions are 4.5mm x 4.5mm x 0.4mm.
The operating temperature range is -40℃ to +85℃.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
