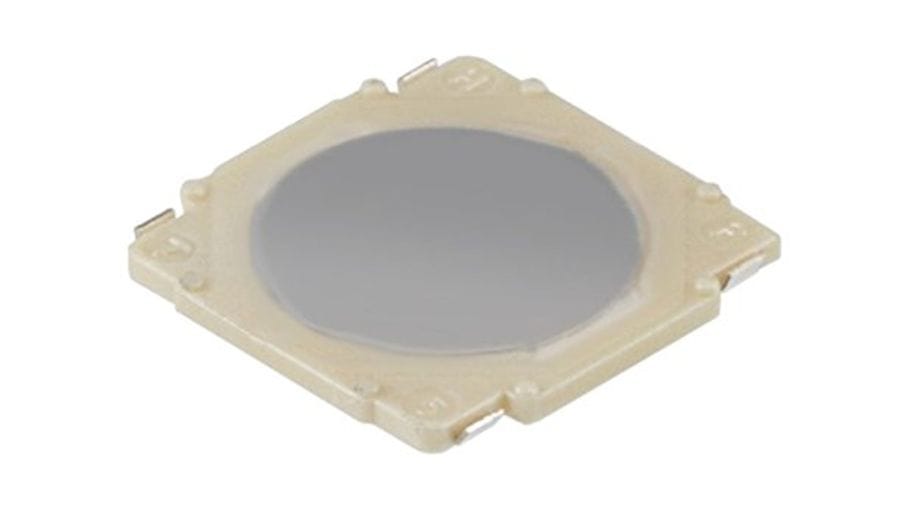

SKRMAAE010 The Alps Alpine SKRMAAE010 is a surface mount TACT Switch™ with a compact, thin-profile design. It offers a 1.57 N operating force and a 0.15 mm travel.
Mfr Part #:

SKRMAAE010

Available from 2 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SKRMAAE010 is a surface mount TACT Switch™ with a compact, thin-profile design. It offers a 1.57 N operating force and a 0.15 mm travel.
✓ Total Stock: 11,955 pcs

SKRMAAE010 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
11,820 pcs
On Request
11820 pcs On Request 1 On Request On Request 19+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
135 pcs
On Request
135 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SKRMAAE010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Halogen Free
Height
Mounting Type
Tape Width
View Similar Products (0)

SKRMAAE010 Description

Short technical summary and product information.

The Alps Alpine SKRMAAE010 is a TACT Switch™ from the SKRM series, designed for surface mounting. This compact and thin-profile component features a height of 0.4mm, making it suitable for space-constrained applications.



Key specifications include an operating force of 1.57 N, a travel of 0.15 mm, and an initial contact resistance of 100mΩ max. The switch is rated for an operating life of 500,000 cycles. Its dimensions are 4.5 x 4.5 x 0.4 mm.



This tactile switch is ideal for applications such as mobile devices, headsets, wearables, notebooks, and peripherals. The surface mount design facilitates automated assembly processes.

SKRMAAE010 Quick Information

Product Type: Tact Switch
Series: SKRM
Canonical Name: Alps Alpine SKRMAAE010 TACT Switch™
Subcategory: Tactile Switch

SKRMAAE010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SKRMAAE010 Features

  • Compact and thin-profile design.
  • Surface mount type for easy assembly.
  • 1.57 N typical operating force.
  • 0.15 mm typical travel distance.
  • Rated for 500,000 operating cycles.

SKRMAAE010 Applications

  • Ideal for mobile devices.
  • Suitable for headset applications.
  • Used in wearable electronics.
  • Applicable for notebook computers.
  • Designed for peripherals.

SKRMAAE010 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating force of the Alps Alpine SKRMAAE010?

The typical operating force for the SKRMAAE010 is 1.57 N.

What is the travel distance of the SKRMAAE010 tactile switch?

The typical travel distance for the SKRMAAE010 is 0.15 mm.

What is the operating life of the Alps Alpine SKRMAAE010?

The SKRMAAE010 is rated for 500,000 operating cycles.

What is the initial contact resistance of the SKRMAAE010?

The initial contact resistance is a maximum of 100 mΩ.

What are the dimensions of the Alps Alpine SKRMAAE010?

The dimensions of the SKRMAAE010 are 4.5 x 4.5 x 0.4 mm.

What is the mounting type for the SKRMAAE010?

The SKRMAAE010 is a surface mount type.

What is the standard package quantity for the SKRMAAE010?

The standard package quantity is 10,000 pieces.
