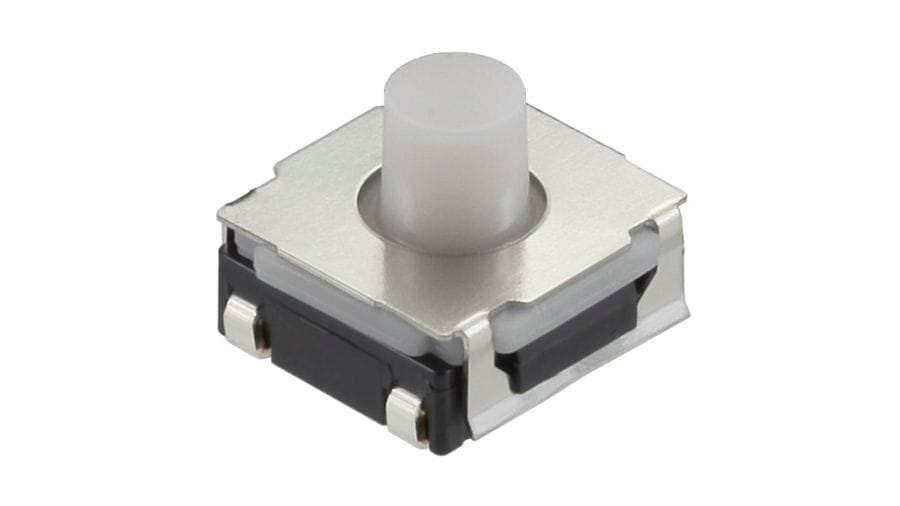

SKRAAME010 The Alps Alpine SKRAAME010 is a surface mount tactile switch designed for general electronic equipment. It offers a 3.92N operating force and a contact resistance of 100mΩ max.
Mfr Part #:

SKRAAME010

Available from 2 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SKRAAME010 is a surface mount tactile switch designed for general electronic equipment. It offers a 3.92N operating force and a contact resistance of 100mΩ max.
✓ Total Stock: 6,960 pcs
$ Price Range: $0.14

SKRAAME010 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
6,894 pcs
On Request
6894 pcs On Request 1 On Request On Request 20+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
66 pcs
On Request
66 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SKRAAME010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Resistance
Insulation Resistance
Mounting Type
Operating Force
Operating Temperature
Tape & Reel
View Similar Products (0)

SKRAAME010 Description

Short technical summary and product information.

The Alps Alpine SKRAAME010 is a tactile switch from the SKRA Series, designed for surface mount applications in general electronic equipment. This switch operates within a temperature range of -40 to 90 ℃ and features a sharp tactile feedback.



Key electrical specifications include a contact resistance of 100 mΩ Max. under a 3.92 N test force, insulation resistance of 100 MΩ Min., and a voltage proof of 250 V AC. The switch has a bounce of 10ms Max. and is rated for 12 V DC at 50 mA absolute maximum.



Mechanically, the SKRAAME010 boasts an operating life of 4,000,000 cycles. Its dimensions are 6.2×6.2×3.5 mm, with a travel of 0.3 mm and a product height of 3.5 mm. The switch is also dust-proof to IP6X equivalent and water-proof to IPX7 standards.



This component is suitable for a wide range of applications including mobile devices, industrial equipment, gaming consoles, healthcare equipment, home appliances, and automotive systems.

SKRAAME010 Quick Information

Product Type: Tact Switch
Series: SKRA
Canonical Name: Alps Alpine SKRAAME010 Tact Switch
Subcategory: Tactile Switch

SKRAAME010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SKRAAME010 Estimated Pricing

Qty Low High
1+ $0.14 $0.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKRAAME010 Features

  • Surface mount tactile switch for general electronics.
  • Sharp tactile feedback operation feeling.
  • 4,000,000 cycles mechanical life.
  • IP6X dust-proof and IPX7 water-proof.
  • Compact dimensions: 6.2×6.2×3.5 mm.

SKRAAME010 Applications

  • Used in mobile notebooks and peripherals.
  • Suitable for industrial robots and drones.
  • Applicable in gaming consoles and VR/AR.
  • Designed for healthcare equipment.
  • Integrated into automotive systems.

SKRAAME010 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the SKRAAME010?

-40 to 90 °C

What are the maximum voltage and current ratings?

12 V DC and 50 mA (resistive load).

What is the contact resistance?

100 mΩ maximum.

What is the operating life?

4,000,000 cycles.

What is the travel distance?

0.3 mm.

What is the bounce time?

10 ms maximum.

What are the dimensions?

6.2×6.2×3.5 mm (width×depth×height).
