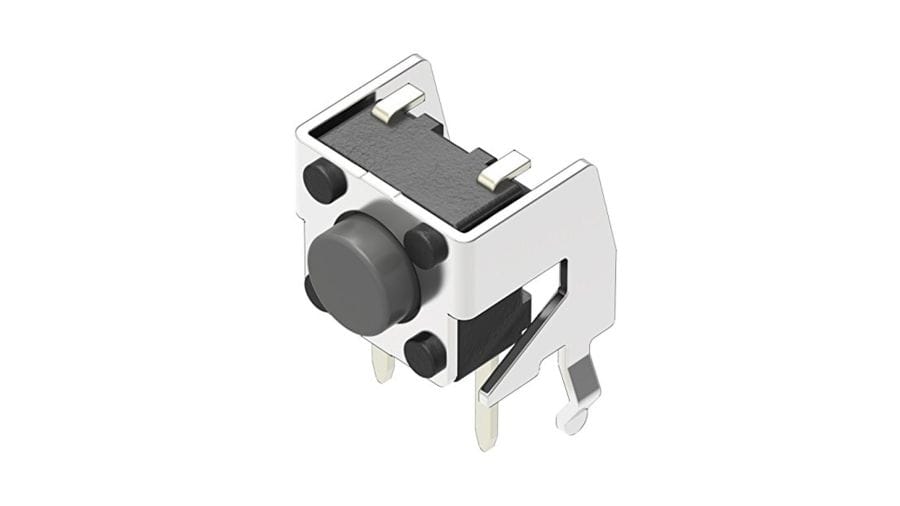

SKHHLNA010 The Alps Alpine SKHH Series TACT Switch, part number SKHHLNA010, is a snap-in type switch with a sharp feeling operation. It offers a typical operating force of 1.57N and a travel of 0.25mm.
Mfr Part #:

SKHHLNA010

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SKHH Series TACT Switch, part number SKHHLNA010, is a snap-in type switch with a sharp feeling operation. It offers a typical operating force of 1.57N and a travel of 0.25mm.
✓ Total Stock: 12,500 pcs
$ Price Range: $2.16

SKHHLNA010 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
12,500 pcs
On Request
12500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SKHHLNA010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Mounting Type
Operating Force
Type
View Similar Products (0)

SKHHLNA010 Description

Short technical summary and product information.

The Alps Alpine SKHH Series TACT Switch is designed for ease of use and offers a wide product variety in a 6.0mm square snap-in format. This specific model, SKHHLNA010, features a sharp feeling operation and a top push actuation.



Key electrical specifications include a maximum rating of 50mA at 12V DC and a minimum rating of 10μA at 1V DC. The initial contact resistance is a maximum of 100mΩ. Mechanically, the switch has a travel of 0.25mm and an operating life of 500,000 cycles. The dimensions are 6.0mm x 6.0mm x 4.3mm.



Applications for the SKHH Series include industrial equipment, healthcare equipment, office equipment, audio/visual systems, and automotive navigation/audio systems. The snap-in mounting type ensures secure installation.



This series is renowned for its reliability and suitability for various industrial and consumer electronics applications.

SKHHLNA010 Quick Information

Product Type: TACT Switch
Series: SKHH
Canonical Name: Alps Alpine SKHH Series TACT Switch
Subcategory: TACT Switch

SKHHLNA010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SKHHLNA010 Estimated Pricing

Qty Low High
1+ $2.16 $2.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKHHLNA010 Features

  • Sharp feeling operation type.
  • 6.0mm square snap-in package.
  • 1.57N typical operating force.
  • 0.25mm travel distance.
  • 500,000 cycles operating life.

SKHHLNA010 Applications

  • Used in industrial equipment.
  • Suitable for healthcare devices.
  • Applied in office equipment.
  • Features in audio and visual systems.
  • Incorporated into automotive systems.

SKHHLNA010 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum voltage rating for the SKHHLNA010 TACT Switch?

The maximum voltage rating is 12V DC.

What is the operating life of the SKHHLNA010 TACT Switch?

The operating life is 500,000 cycles.

What are the dimensions of the SKHHLNA010 TACT Switch?

The dimensions are 6.0mm x 6.0mm x 4.3mm.

What is the mounting type for the SKHHLNA010 TACT Switch?

The mounting type is Snap-in.

What is the operating force for the SKHHLNA010 TACT Switch?

The typical operating force is 1.57N.
