| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47,000 pcs
|
47000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Operating Force | |
| Storage Temperature | |
| Tape & Reel | |
| Type |

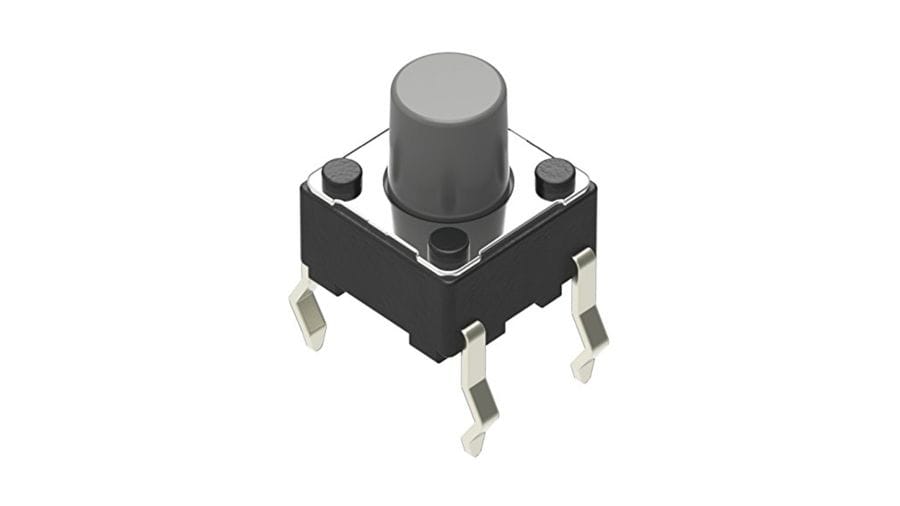

The Alps Alpine SKHHBWA010 is a TACT Switch from the SKHH Series, designed for snap-in mounting. This component features a sharp feeling operation and is suitable for automotive applications.
Key electrical specifications include a maximum rating of 50mA at 12V DC and a minimum rating of 10μA at 1V DC. The switch has an initial contact resistance of 100mΩ maximum. Mechanically, it offers an operating force of 1.57N with a travel of 0.25mm. The operating life is rated for a minimum of 500,000 cycles.
The dimensions of the SKHHBWA010 are 6.0x6.0x7.0mm (W×D×H). It is designed for ease of use and offers a wide product variety within the 6.0mm square snap-in type.
Applications for this series include industrial equipment, healthcare equipment, analysis and test equipment, office equipment, visual and audio equipment, and automotive navigation/audio systems and HVAC.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating force is 1.57N.
The travel distance is 0.25mm.
The rated operating life is 500,000 cycles.
The dimensions are 6.0x6.0x7.0mm (W×D×H).
The maximum rating is 50mA at 12V DC.
The minimum rating is 10μA at 1V DC.
Yes, the SKHHBWA010 TACT Switch is automotive compatible.
