SKHHLPA010
Alps Alpine

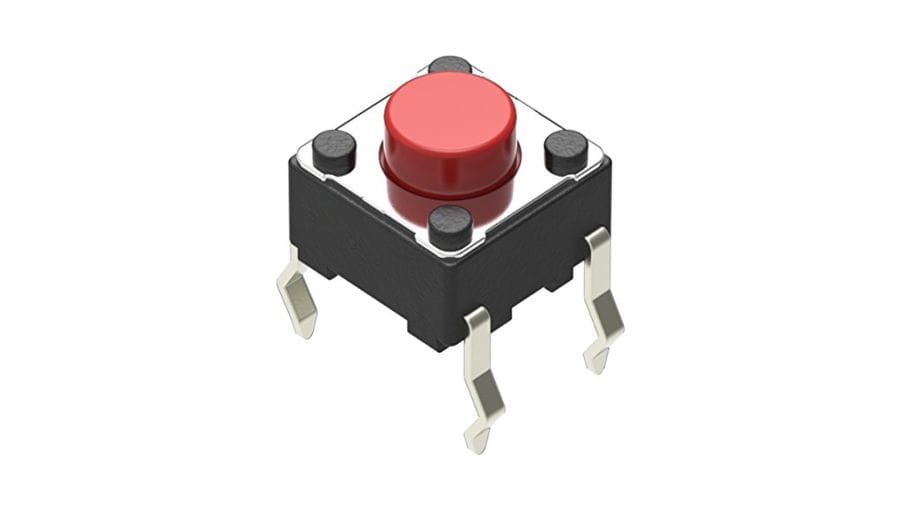

The Alps Alpine SKHHLPA010 is a snap-in type TACT Switch from the SKHH Series. It offers a rating of 50mA at 12V DC and a typical operating life of 200,000 cycles.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125,000 pcs
|
125000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Force |
The Alps Alpine SKHHARA010 is a TACT Switch belonging to the SKHH series, characterized by its snap-in mounting type and sharp feeling operation. This component is designed for ease of use and offers a wide product variety within a 6.0mm square form factor.
Key electrical specifications include a maximum rating of 50mA at 12V DC and a minimum rating of 10μA at 1V DC. The switch features an operating force of up to 2.55N, a travel of 0.25mm, and an initial contact resistance of 100mΩ maximum. It boasts an impressive operating life of 200,000 cycles.
The dimensions of this specific model are 6.0x6.0x5.0mm (W×D×H). The SKHH series is suitable for a range of applications, including industrial equipment, healthcare equipment, office equipment, audio/visual systems, and automotive navigation/audio systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 50mA.
The maximum voltage rating is 12V DC.
The operating force is up to 2.55N.
The travel distance is 0.25mm.
The operating life is 200,000 cycles.
The dimensions are 6.0x6.0x5.0mm.
It uses a snap-in mounting type.
