Mfr Part #:

SKHHAKA010

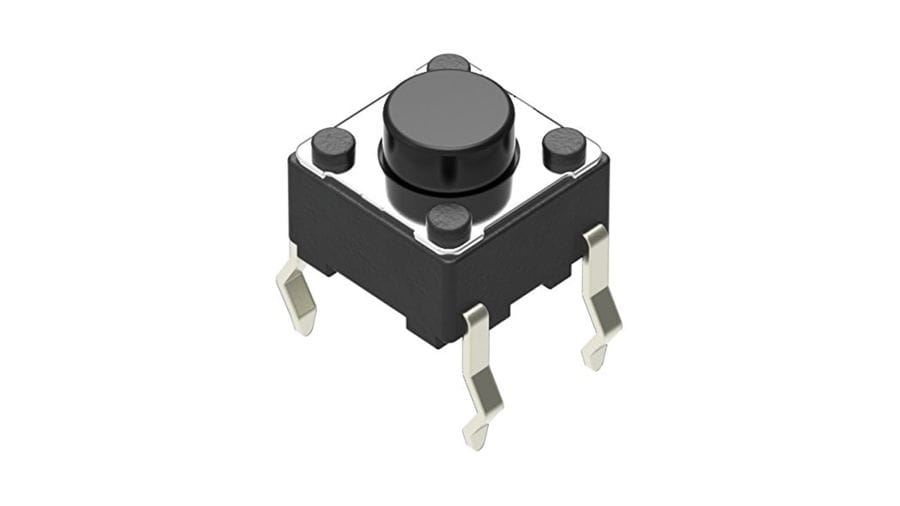

The Alps Alpine SKHHAKA010 is a snap-in mount TACT Switch from the SKHH Series. It offers a sharp feeling type operation with a 0.98N operating force and a long operating life of 1,000,000 cycles.

✓ Total Stock: 70,590 pcs

$ Price Range: $1.00

SKHHAKA010 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Seba Components ✓ Non-Authorised Inventory information	70,000 pcs On Request	70000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	590 pcs On Request	590 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SKHHAKA010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Alps Alpine
Dimensions	6.0 x 6.0 x 5.0 mm
Height	5.0 mm
Insulation Resistance	100 MΩ min.
Mounting Type	Snap-in
Operating Force	0.98 N
Operating Temperature Range	-40℃ to +90℃

View Similar Products (0)

SKHHAKA010 Description

Short technical summary and product information.

The Alps Alpine SKHHAKA010 is a TACT Switch belonging to the SKHH Series, characterized by its sharp feeling type and snap-in mounting. This component is designed for various applications including industrial equipment, healthcare analysis and test equipment, office equipment, and automotive navigation/audio systems.

Key electrical and mechanical specifications include an operating force of 0.98N, a travel of 0.25mm, and an impressive operating life of 1,000,000 cycles. The initial contact resistance is a maximum of 100mΩ. The switch has a compact dimension of 6.0x6.0x5.0mm with a height of 5.0mm.

It operates within a temperature range of -40℃ to +90℃ and has a maximum rating of 50mA at 12V DC and a minimum rating of 10μA at 1V DC. Electrical performance includes an insulation resistance of 100MΩ min. at 100V DC and a voltage proof of 250V AC for 1 minute. Environmental testing includes cold, dry heat, and damp heat conditions.

The SKHHAKA010 is supplied in bulk packaging with a standard package quantity of 10,000 pieces. It is designed for through-hole mounting with a snap-in mechanism. Proper soldering conditions are specified, including preheating and soldering temperatures, with cautions against washing the switch and flux penetration.

SKHHAKA010 Quick Information

Product Type: TACT Switch

Series: SKHH Series

Canonical Name: Alps Alpine SKHHAKA010 TACT Switch

Subcategory: Wire to Board

SKHHAKA010 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SKHHAKA010 Estimated Pricing

Qty	Low	High
1+	$1.00	$1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKHHAKA010 Features

Sharp feeling type TACT Switch.
0.98N nominal operating force.
1,000,000 cycles nominal operating life.
6.0x6.0x5.0mm dimensions.
Snap-in mounting type.

SKHHAKA010 Applications

Used in industrial equipment.
Suitable for healthcare equipment.
Applied in office equipment.
Found in audio/visual systems.
Used in automotive HVAC systems.

SKHHAKA010 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating force of the Alps Alpine SKHHAKA010 TACT Switch?

The operating force is 0.98 N.

What is the operating life of the SKHHAKA010 TACT Switch?

The operating life is 1,000,000 cycles.

What are the dimensions of the Alps Alpine SKHHAKA010?

The dimensions are 6.0 x 6.0 x 5.0 mm.

What is the maximum current and voltage rating for the SKHHAKA010?

The maximum rating is 50mA at 12V DC.

What is the operating temperature range for this TACT Switch?

The operating temperature range is -40℃ to +90℃.

How is the Alps Alpine SKHHAKA010 mounted?

It features snap-in mounting.
