| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Divider | |
| Frequency | |
| Input | |
| Input Frequency | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| Output Frequency | |
| PLL | |
| Ratio | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |

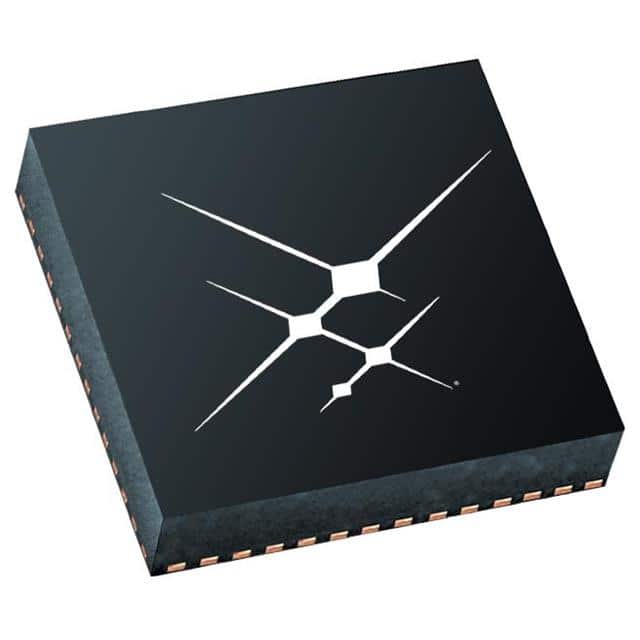

The Skyworks Solutions SI5383B-D13650-GM is a versatile clock synchronizer designed for network synchronization applications. It supports input frequencies from 8 kHz to 750 MHz and output frequencies up to 718.5 MHz, with ultra-low jitter of less than 150 fs.
This device operates within a voltage range of 1.71V to 3.47V and has an operating temperature range of -40°C to 85°C. It features multiple output types including CML, HCSL, LVCMOS, LVDS, and LVPECL, making it suitable for various system designs.
The SI5383B-D13650-GM is available in a 56-VFQFN Exposed Pad package and utilizes surface mount technology. Its design supports flexible SyncE/IEEE 1588 and SETS architectures, making it ideal for wireless backhaul, IP radio, and data center switch applications requiring precise timing.
Configuration is possible via a serial interface, and programming can be easily done using ClockBuilder Pro software. Factory pre-programmed devices are also an option for simplified integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.01 | $7.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 1.71V to 3.47V.
It is available in a 56-VFQFN Exposed Pad package.
The operating temperature range is -40°C to 85°C (TA).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The input frequency range is 8 kHz to 750 MHz.
The output frequency range is 100 Hz to 718.5 MHz.
