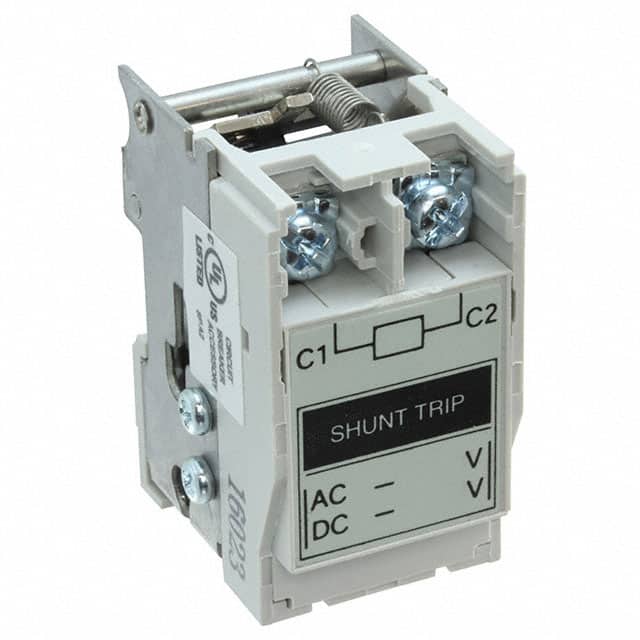

SHT-12 The American Electrical Inc. SHT-12 is a shunt trip module designed for UTS150N circuit breakers. It operates at 12 VDC with a current rating of 30 mA.
Mfr Part #:

SHT-12

Mfr Name: American Electrical Inc.
American Electrical Inc.
The American Electrical Inc. SHT-12 is a shunt trip module designed for UTS150N circuit breakers. It operates at 12 VDC with a current rating of 30 mA.
Stock on Request

SHT-12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
For Use With
View Similar Products (0)

SHT-12 Description

Short technical summary and product information.

The SHT-12 from American Electrical Inc. is a shunt trip module accessory for their UTS150N series molded case circuit breakers. This module operates with a DC voltage of 12 V and requires 30 mA of current.



It is designed to provide remote tripping functionality for the associated circuit breakers, enhancing safety and control in electrical systems. The module is RoHS3 compliant, indicating adherence to restrictions on hazardous substances.



This accessory is part of the broader range of circuit protection components offered by American Electrical Inc., suitable for various industrial and commercial applications requiring reliable electrical safety and control.

SHT-12 Quick Information

Product Type: Shunt Trip Module
Canonical Name: Shunt Trip Module
Subcategory: Shunt Trip

SHT-12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SHT-12 Features

  • Rated for 12 VDC operation.
  • Draws 30 mA current.
  • Designed for UTS150N to UTS6000N.
  • RoHS3 compliant shunt trip module.
  • Includes CE and UL compliance.

SHT-12 Applications

  • Remote trip for UTS150N-UTS6000N breakers
  • 12 VDC shunt trip for circuit protection
  • Used in molded case circuit breaker systems
  • Provides emergency disconnect capability
  • Suitable for industrial power distribution

SHT-12 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the SHT-12 shunt trip module?

The SHT-12 shunt trip module operates at 12 VDC.

What is the current rating for the SHT-12 shunt trip module?

The SHT-12 shunt trip module has a current rating of 30 mA.

What circuit breakers is the SHT-12 compatible with?

The SHT-12 shunt trip module is compatible with UTS150N circuit breakers.

Is the SHT-12 shunt trip module RoHS compliant?

Yes, the SHT-12 shunt trip module is RoHS3 compliant.
