| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Type | |
| Automotive Grade | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

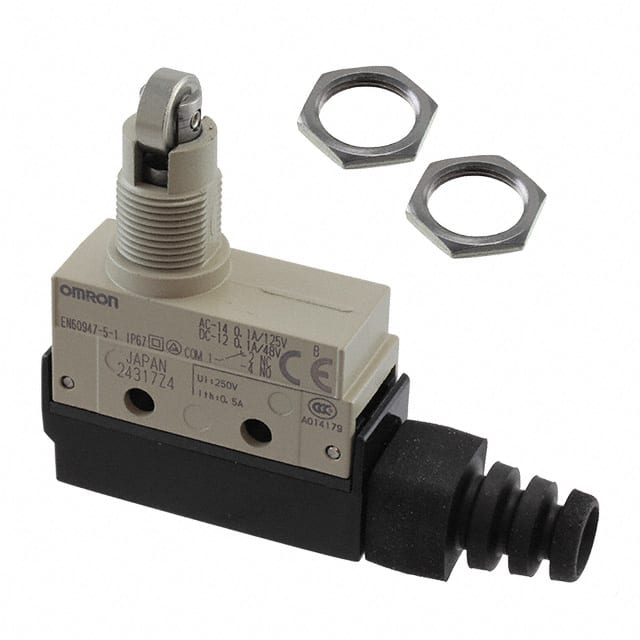

The Omron SHL-Q2155 is a versatile limit switch designed for reliable operation in various industrial applications. It features a single pole double throw (SPDT) circuit and is rated for a current of 10A AC and 5A DC at 125V.
This switch is equipped with a roller plunger actuator and mounts directly to a panel using screw terminals for secure connections. Its operating temperature range is from -10°C to 80°C, and it offers a high level of protection with an IP67 rating, making it dust-tight and waterproof.
Key mechanical specifications include a pretravel of 0.060" (1.5mm), an overtravel of 0.079" (2.0mm), a differential travel of 0.020" (0.5mm), and an operating force of 1000gf. The release force is 200gf.
Compliance information indicates RoHS3 compliance and an MSL of 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 125 V.
The current rating is 10A (AC), 5A (DC).
It features a roller plunger actuator.
The operating temperature range is -10°C to 80°C.
Yes, it is RoHS3 Compliant.
