| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Duty Cycle | |
| Frequency Range | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Isolation | |
| Supply Voltage | |
| Topology |

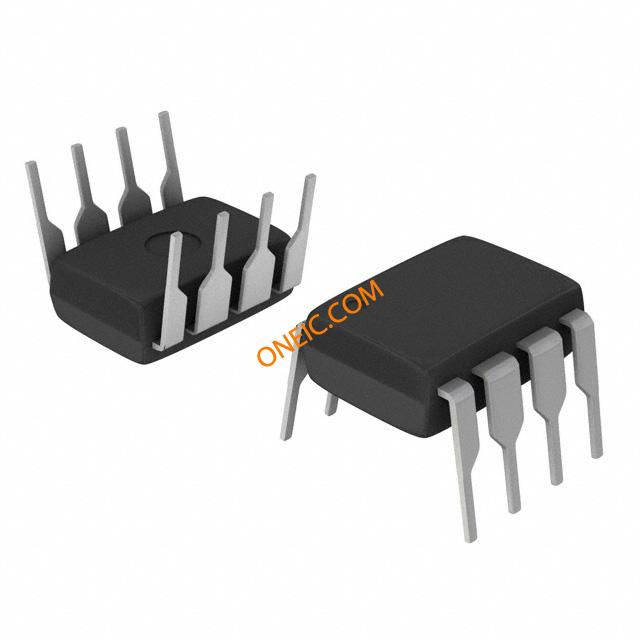

The SG1842Y is a Current Mode PWM Controller manufactured by Linx Technologies Inc. This component is designed for power management applications, offering an output current of 200mA and a supply voltage of 30V. It operates within a frequency range of 100Hz to 500kHz with a maximum duty cycle of 100%.
The controller features a typical rise time of 50ns and a fall time of 50ns. It is designed with an isolated output configuration and has a minimum input voltage requirement of 13.5V. The operating temperature range for this device is -55 to 125°C.
Packaged in an 8-CDIP through-hole configuration, the SG1842Y is suitable for applications requiring robust performance and a wide operating temperature range. Its topology is Flyback, and it is noted for its radiation hardness.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Minimum input voltage is 13.5 V and supply voltage is up to 30 V.
The SG1842Y comes in an 8-CDIP through-hole package.
The operating temperature range is -55 to 125 °C.
The output current is 200 mA.
Switching frequency is up to 500 kHz, with a range of 100 Hz to 500 kHz.
It supports flyback topology.
Yes, the output is isolated.
