| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

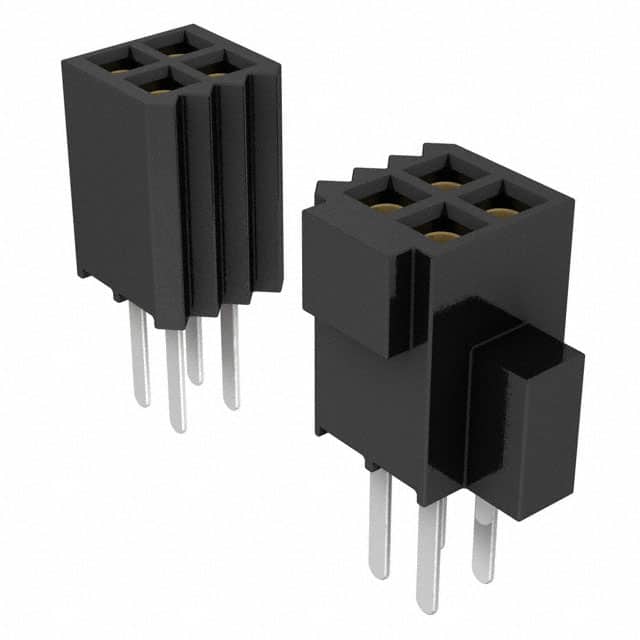

The Samtec SFM-135-01-S-D is a 70-position, 2-row receptacle from the SFM series, designed for board-to-board or cable applications. It features a push-pull fastening type and through hole solder termination. The connector has a 1.27mm pitch and row spacing, with a contact length of 3.05mm. It supports multiple mated stacking heights ranging from 6.02mm to 11.63mm, offering flexibility in board stacking configurations.
Electrical ratings include 3.2A per contact and 250VAC. The contact finish is tin with a thickness of 30.0µin (0.76µm). The insulator is black with a height of 4.57mm and is rated UL94 V-0 for flammability. The operating temperature range is -55°C to 125°C, suitable for a wide range of environments.
This receptacle is commonly used in applications requiring high-density interconnects with reliable push-pull mating. The through hole mounting provides robust mechanical attachment to the PCB. All 70 positions are loaded, ensuring full signal or power routing capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.51 | $16.51 |
| 108+ | $12.80 | $12.80 |
| 252+ | $11.84 | $11.84 |
| 504+ | $10.33 | $10.33 |
| 1,008+ | $10.32 | $10.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
70 positions, all loaded, in 2 rows.
1.27mm (0.050") pitch and row spacing.
3.2A per contact.
250VAC.
Through hole with solder termination.
-55°C to 125°C.
Tin, 30.0µin (0.76µm) thickness.
