| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Self Resonant Frequency | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

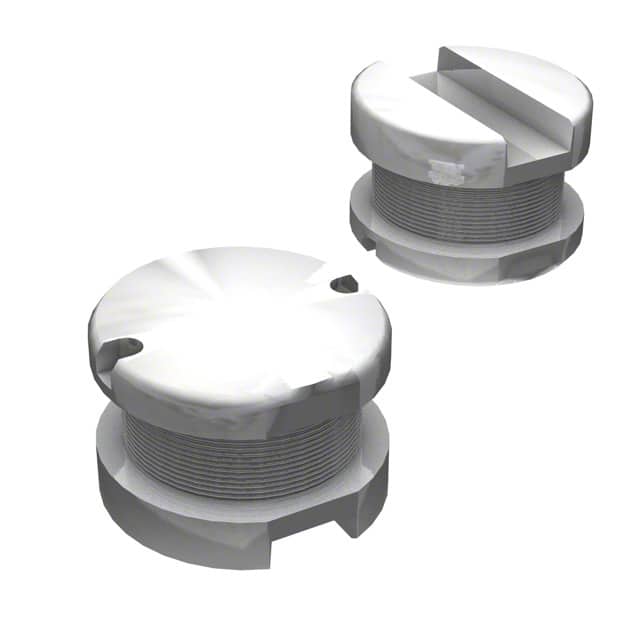

This Bourns SDR0805-102KL is a wirewound, drum core SMD power inductor designed for surface mounting. It features a 1mH inductance with a ±10% tolerance and a 210mA current rating.
The inductor has a maximum DC resistance of 4.5 Ohms and a saturation current of 340mA. Its operating temperature range is -40°C to 125°C, making it suitable for various electronic applications.
The SDR0805-102KL is unshielded and constructed with a ferrite core. Its compact SMD package is designed for efficient integration into printed circuit boards.
Applications include input/output of DC/DC converters and power supplies for portable communications equipment, camcorders, LCD TVs, and CD players.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 1 mH.
The tolerance is ±10%.
The Q factor is 27 at a test frequency of 252 kHz.
The minimum self-resonant frequency is 27 MHz.
The maximum DC resistance is 4.5 Ohms.
The current rating is 210 mA.
The saturation current is 340mA.
The operating temperature range is -40°C to 125°C.
It is a Drum Core, Wirewound type inductor.
No, it is an unshielded inductor.
The core material is Ferrite.
The frequency rating is 3MHz.
