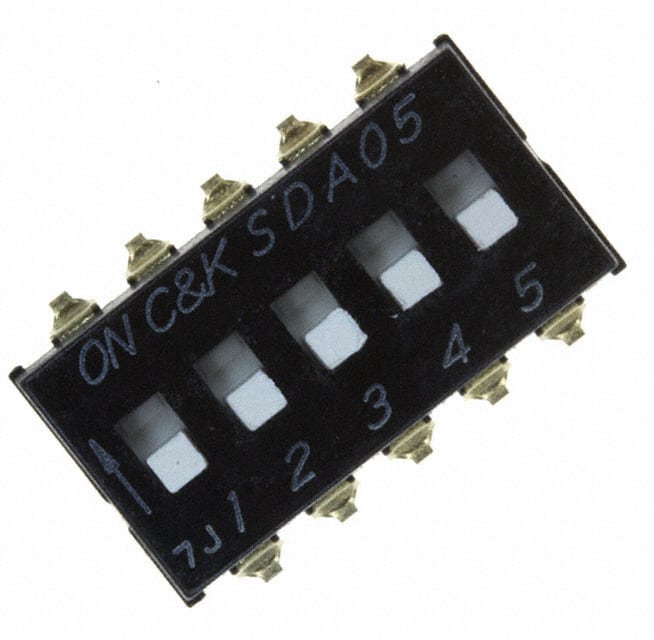

SDA05H1SBD The C&K Components SDA05H1SBD is a slide DIP switch with 5 positions and an SPST circuit. It is designed for surface mounting with Gull Wing terminations.
Mfr Part #:

SDA05H1SBD

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components SDA05H1SBD is a slide DIP switch with 5 positions and an SPST circuit. It is designed for surface mounting with Gull Wing terminations.
✓ Total Stock: 640 pcs
$ Price Range: $0.75

SDA05H1SBD Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
590 pcs
On Request
590 pcs On Request 1 On Request On Request N/A On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SDA05H1SBD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Dielectric Withstanding Voltage
Height Above Board
Insulation Resistance
Mounting Type
Number of Positions
Operating Force
Operating Temperature
Pitch
Storage Temperature
Termination Style
Voltage Rating
Washable
View Similar Products (0)

SDA05H1SBD Description

Short technical summary and product information.

The C&K Components SDA05H1SBD is a low-profile slide DIP switch featuring a 5-position SPST circuit. It is rated for 25mA at 24VDC and 100mA at 5VDC, with a contact resistance of 50mΩ maximum initial.



This switch has a mechanical and electrical life of 1,000 cycles at rated loads. The operating temperature range is -40°C to 85°C. It is designed for surface mounting with Gull Wing termination style and has a pitch of 2.54mm (0.100"). The height above the board is 0.214" (5.45mm).



Materials include PPS housing and cover, PA6T actuator, gold-plated Beryllium copper contacts, and gold-plated over nickel-plated brass terminals. The tape seal is Polyimide.



Typical applications include address switches for industrial controls, logic switching for computers and peripherals, and function control for numerous applications.

SDA05H1SBD Quick Information

Product Type: DIP Switch
Series: SDA Series
Canonical Name: C&K Components SDA05H1SBD Slide DIP Switch
Subcategory: Slide DIP Switch

SDA05H1SBD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SDA05H1SBD Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SDA05H1SBD Features

  • 5-position SPST slide DIP switch.
  • Rated for 25mA at 24VDC.
  • Surface mount with Gull Wing termination.
  • Operating temperature range -40°C to 85°C.
  • Low profile design saves space.

SDA05H1SBD Applications

  • Used in electronic control panels
  • Suitable for PCB switching applications
  • Ideal for compact device interfaces
  • Applied in industrial automation

SDA05H1SBD FAQs

5 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the SDA05H1SBD switch?

The SDA05H1SBD switch has a voltage rating of 24V DC.

What is the contact rating of this switch?

The contact rating is 25mA at 24V DC.

What mounting style does the SDA05H1SBD use?

It uses surface mount with gull wing termination style.

What is the operating temperature range for this switch?

The operating temperature range is -40°C to 85°C.

What material are the contacts made of?

The contacts are made of beryllium copper with gold finish.
