| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,868 pcs
|
3868 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The SCTH35N65G2V-7AG is an N-Channel Silicon Carbide (SiCFET) power transistor from STMicroelectronics. It is designed for high-voltage power switching applications with a drain-to-source voltage rating of 650V and a continuous drain current of 45A at 25°C. The device exhibits a maximum on-resistance of 67mOhm at 20A gate drive and a gate charge of 73nC, enabling efficient switching performance.
This SiCFET integrates advanced silicon carbide technology to deliver high efficiency and reliability in demanding environments. The operating temperature range spans from -55°C to 175°C, allowing use in extreme thermal conditions. The maximum power dissipation is 208W, and the input capacitance is 1370pF at 400V drain-source voltage.

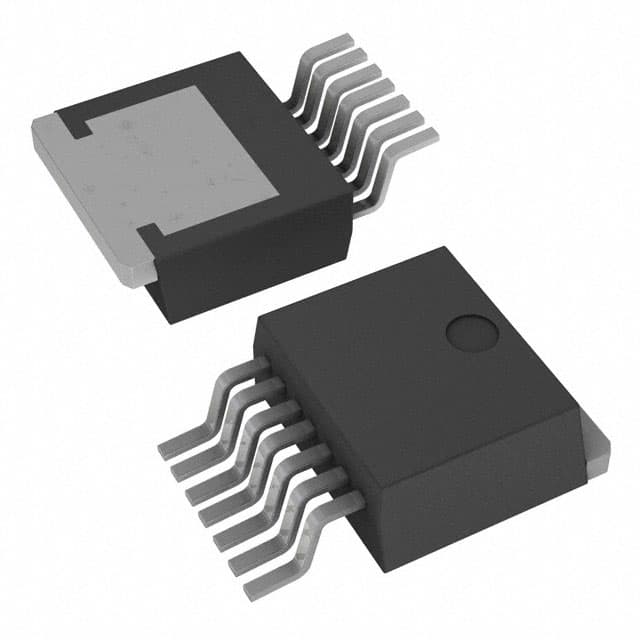

The device is offered in a surface-mount H2PAK-7 package, which is equivalent to TO-263-8, D²Pak (7 leads + Tab), and TO-263CA. This package supports compact PCB layouts and efficient heat dissipation. The gate-source voltage maximum is +22V/-10V, and the threshold voltage is 3.2V at 1mA drain current.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage rating is 650V.
The continuous drain current is 45A at 25°C.
The maximum on-resistance is 67mOhm at 20A drain current and 20V gate-source voltage.
The operating temperature range is -55°C to 175°C (junction temperature).
The device is available in a surface-mount H2PAK-7 package, which is equivalent to TO-263-8, D²Pak (7 leads + Tab), and TO-263CA.
The maximum total gate charge is 73nC at 20V gate-source voltage.
The maximum input capacitance is 1370pF at 400V drain-source voltage.
