Mfr Part #:

SA01

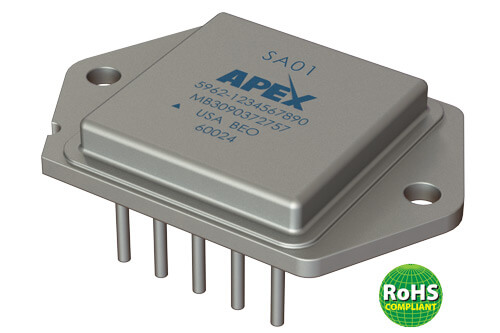

The Apex Tool Group SA01 is a PWM amplifier designed for high-power analog applications. It features a continuous output current of 20A and a maximum supply voltage of 100V.

✓ Total Stock: 2,008 pcs

SA01 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,008 pcs On Request	2008 pcs	On Request	1	On Request	On Request	24+	On Request	On Request

SA01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Apex Tool Group
Output Current	20 A
Package / Case	MO-127 (CR)
Power Dissipation	250 W
Quiescent Current	185 mA
Slew Rate	42 V/µs
Supply Voltage	100 V

View Similar Products (0)

SA01 Description

Short technical summary and product information.

The Apex Tool Group SA01 is a PWM amplifier designed for precision power analog applications. It delivers a continuous output current of up to 20A and supports a maximum supply voltage of 100V. This amplifier boasts a typical slew rate of 42 V/µs and a maximum quiescent current of 185 mA. The maximum power dissipation is rated at 250W.

Packaged in a MO-127 (CR) case, the SA01 is suitable for industrial, test and measurement, aerospace & defense, and medical markets requiring high power precision control of current, voltage, and speed. Apex Microtechnology is an industry leader in high power analog components, designed to meet performance and cost targets for precision control applications.

This component is part of Apex Microtechnology's range of high-performance linear amplifiers, PWM amplifiers, integrated power modules, precision ICs, and precision voltage references. These products are engineered for demanding applications where accuracy and power handling are critical.

SA01 Quick Information

Product Type: PWM Amplifier

Canonical Name: SA01 PWM Amplifier

SA01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SA01 Features

20A continuous output current capability.
100V maximum supply voltage.
42V/µs typical slew rate.
250W maximum power dissipation.
MO-127 (CR) package.

SA01 Applications

High power precision current control.
High power precision voltage control.
High power precision speed control.
Industrial automation systems.
Test and measurement equipment.

SA01 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum continuous output current of the SA01?

The maximum continuous output current is 20 A.

What is the maximum supply voltage for the SA01?

The maximum supply voltage is 100 V.

What is the switching frequency of the SA01?

The maximum switching frequency is 42 kHz.

What is the power dissipation of the SA01?

The maximum power dissipation is 250 W.

What package type is the SA01 available in?

The SA01 is available in an MO-127 (CR) package.
