| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
191 pcs
|
191 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

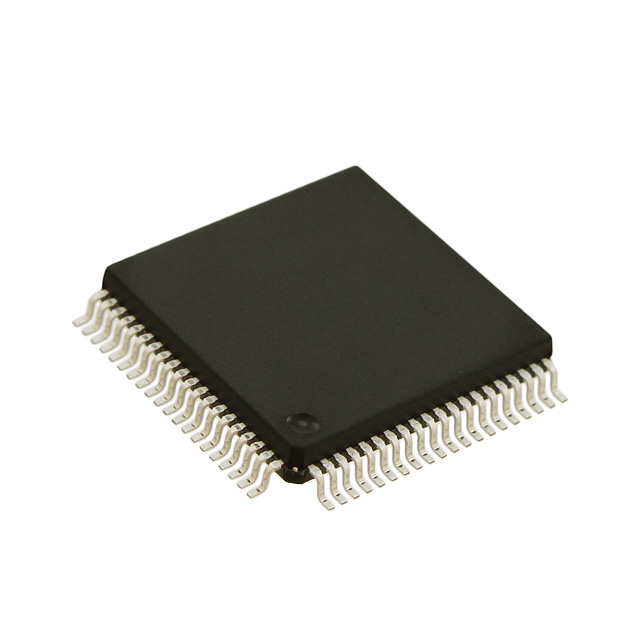

The NXP Semiconductors S912XEQ512BCAA is a high-performance 16-bit microcontroller based on the HCS12X core, operating at speeds up to 50MHz. This device is designed for demanding embedded applications and offers substantial memory capacity with 512KB of FLASH program memory and 32KB of RAM, along with 4K x 8 EEPROM for non-volatile data storage.
Key electrical features include a wide operating voltage range of 1.72V to 5.5V, 59 I/O pins, and integrated peripherals such as Low Voltage Detector (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). Connectivity options are extensive, supporting protocols like CANbus, EBI/EMI, I²C, IrDA, SCI, and SPI. It also includes an 8-channel 12-bit Analog-to-Digital (A/D) converter for precise analog signal processing.
The S912XEQ512BCAA is supplied in an 80-pin QFP (Quad Flat Package) surface-mount form factor, making it suitable for compact and high-density designs. Its operating temperature range is -40°C to 85°C (TA).
This microcontroller is well-suited for applications in automotive sectors, including engine control units and body electronics, as well as industrial control, consumer electronics, medical devices, and telecommunications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 512KB (512K x 8).
The RAM size is 32K x 8.
The operating voltage range is 1.72V to 5.5V.
The operating temperature range is -40°C to 85°C (TA).
It is available in an 80-QFP (14x14) package.
Integrated peripherals include LVD, POR, PWM, and WDT.
It supports CANbus, EBI/EMI, I²C, IrDA, SCI, and SPI.
