| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,015 pcs
|
2015 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Failure Rate | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

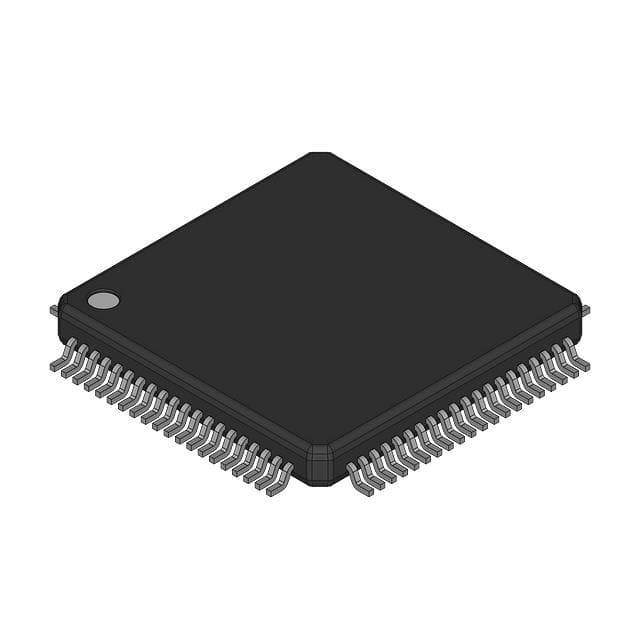

The S912XEG128J2CAA from Freescale Semiconductor is a 16-bit microcontroller based on the HCS12X core. This embedded IC features 128KB of FLASH program memory and 12KB of RAM, supporting a clock speed of 50MHz.
Designed for a wide range of applications, it operates within a supply voltage range of 1.72V to 5.5V and has an operating temperature range of -40°C to 85°C. The microcontroller includes various peripherals such as LVD, POR, PWM, and WDT, and supports connectivity options including CANbus, EBI/EMI, I²C, IrDA, SCI, and SPI.
It comes in an 80-QFP package suitable for surface mounting. The device also includes an 8x12b Analog-to-Digital converter and 2KB of EEPROM size. An external oscillator is required for its operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.72V to 5.5V.
The microcontroller is supplied in an 80-QFP (14x14) package.
The operating temperature range is -40°C to 85°C (TA).
Yes, this part is RoHS3 Compliant.
