S8V-CP0424
Omron
The Omron S8V-CP0424 is a DC electronic circuit protector designed for reliable protection against short circuits and overcurrents. It features 4 outputs and a 24 VDC rated input voltage.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Number of Outputs |

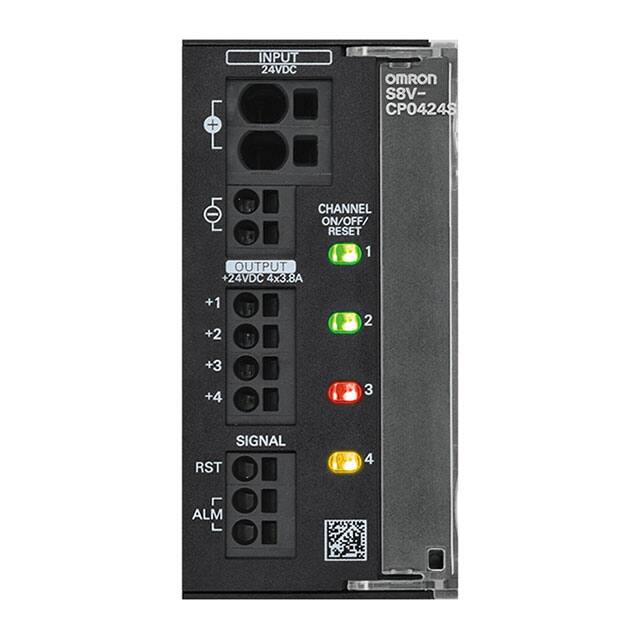

The Omron S8V-CP0424S is a DC Electronic Circuit Protector from the S8V-CP series, designed for simplified safety and reliable protection of DC circuits against short circuits and overcurrents. This model offers 4 outputs and operates with a rated input voltage of 24 VDC, with an allowable input range of 20 to 30 VDC.
Key electrical characteristics include a maximum rated output current of 3.8 A per output and a typical internal voltage drop of 180 mV. The device incorporates a current tripping function for protection and features sequential start-up of outputs to prevent start-up issues. The power consumption is typically 4 W when all outputs are connected at 3.8 A per channel.
Designed for ease of use, it utilizes a push-in plus terminal block and features push buttons with indicators for each output status. The switch allows for setting the rated output current appropriately for each load. This model is also UL Class 2 output compatible.
Applications for this circuit protector include various industrial and automation systems requiring robust DC power distribution and protection. Its compact design helps save space while providing multi-channel protection.
The rated input voltage is 24 VDC, with an allowable range of 20 to 30 VDC.
This model provides 4 outputs.
The maximum rated output current per output is 3.8 A.
Yes, it features a current tripping function.
The typical internal voltage drop is 180 mV.
Yes, it is UL Class 2 output compatible.
