S8V-CP0424S
Omron

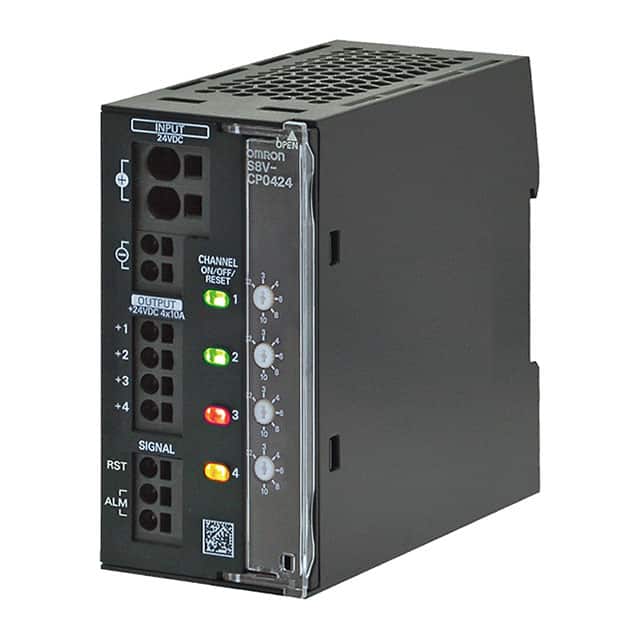

The Omron S8V-CP0424S is a DC Electronic Circuit Protector designed for reliable DC circuit protection. It features 4 outputs and a 24 VDC input voltage.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Number of Outputs |
The Omron S8V-CP0424 is a DC electronic circuit protector from the S8V-CP series, engineered for simplified safety design in DC circuits. It provides reliable protection against short circuits and overcurrent conditions, saving space with its multi-channel capability.
This model features a 24 VDC rated input voltage with an allowable range of 20 to 30 VDC. It offers 4 outputs, each with a maximum rated output current of 10 A. The internal voltage drop is typically 180 mV, and the output leakage current is a maximum of 10 mA. Power consumption is typically 8 W when all outputs are connected at 10 A per channel, and 0.7 W when all outputs are tripped.
The protector includes sequential start-up of outputs to avoid start-up trouble, with an initialization time of 250 ms typ. and a start-up delay time ranging from 50 ms to 5 s. It utilizes a push-in plus terminal block and features push buttons with indicators for each output status. A switch allows for setting the rated output current appropriately for each output depending on the load.
Designed for use with S8V-CP Series Power Supplies, this accessory type is an Overcurrent Protection Module. It is RoHS3 compliant and has an MSL rating of 1.
The rated input voltage is 24 VDC with an allowable range of 20 to 30 VDC.
Each output is rated for a maximum continuous current of 10 A.
It has four outputs.
The typical internal voltage drop is 180 mV.
Under full load (10 A per output), typical power consumption is 8 W. When all outputs are tripped, it is 0.7 W.
Initialization time is 250 ms typical, with an adjustable delay of 50 ms to 5 s.
It is designed for use with Omron S8V-CP series power supplies.
