Mfr Part #:

S761KS17

Name: S761KS17
SKU: S761KS17

Mfr Name: Conxall/Switchcraft

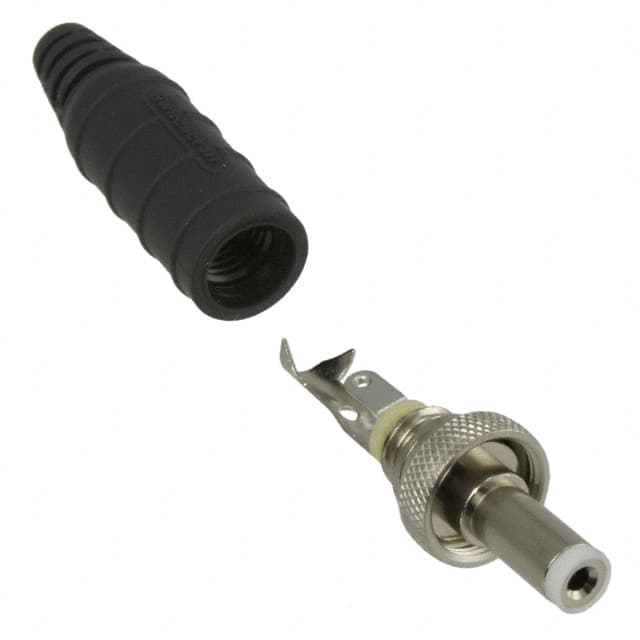

CONN PWR PLUG 2X5.5MM SOLDER

Stock on Request

S761KS17 Description

Short technical summary and product information.

CONN PWR PLUG 2X5.5MM SOLDER

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

S761KS15

Conxall/Switchcraft

The S761KS15 is a sealed power plug from Conxall/Switchcraft with a 2.00mm ID and 5.50mm OD mating diameter, rated for 5A at 30VDC.

S761KS12

Conxall/Switchcraft

CONN PWR PLUG 2X5.5MM SOLDER

Account

Category	Power Connectors
Manufacturer Name	Conxall/Switchcraft
Actual Diameter	0.079" (2.00mm ID), 0.217" (5.50mm OD)
Connector Type	Plug
Current Rating (Amps)	5 A
Features	Cable Clamp, Thread Lock
Gender	Female
Industry Recognized Mating Diameter	2.00mm ID (0.079"), 5.50mm OD (0.217")
Ingress Protection	IP68
Insulation Color	White
Internal Switch(s)	Does Not Contain Switch
Mounting Type	Free Hanging (In-Line)
Number of Positions	2 Conductors, 2 Contacts
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage	30VDC
