| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Handle Material | |
| Industry Recognized Mating Diameter | |
| Ingress Protection | |
| Insulation Color | |
| Insulator Material | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Shielding | |
| Termination | |
| Thread Size (@ Locking Ring) | |
| Thread Size (@ Plug) | |
| Voltage |

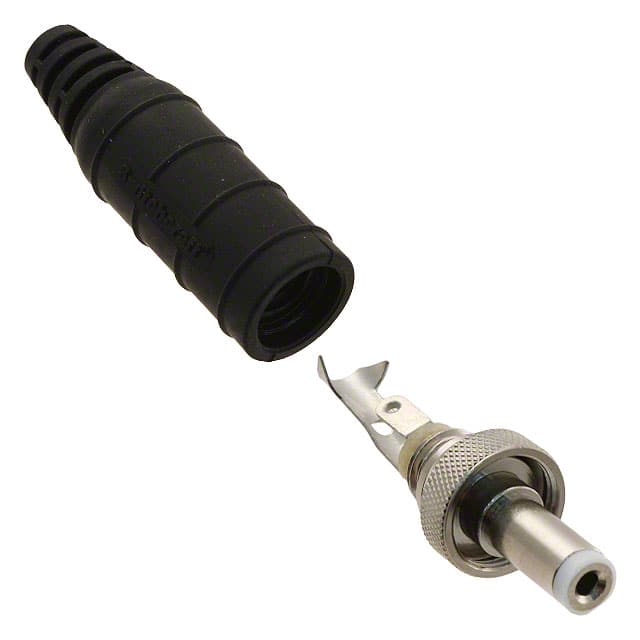

The Conxall/Switchcraft S761KS15 is a female power plug from the S761KS series of sealed power connectors. It features a 2.00mm center pin ID and 5.50mm outer diameter, making it compatible with standard 2.1mm and 2.5mm power jacks. The connector is rated for 5A at 30VDC and is unshielded with no internal switch.
This plug uses solder eyelet termination for secure wire attachment and is designed for free-hanging (in-line) mounting. It includes a cable clamp and thread lock for strain relief and secure mating. The plug handle is made of thermoplastic rubber over thermoplastic in black, and the insulators are thermoplastic. Contactors and the locking ring are copper alloy with nickel plating, while terminals are copper alloy with tin plating.
The S761KS15 is IP68 rated for protection against dust and water immersion, making it suitable for harsh environments. It is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.06 | $9.06 |
| 10+ | $7.70 | $7.70 |
| 25+ | $7.21 | $7.21 |
| 50+ | $6.87 | $6.87 |
| 100+ | $6.54 | $6.54 |
| 300+ | $6.05 | $6.05 |
| 500+ | $5.84 | $5.84 |
| 1,000+ | $5.56 | $5.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The S761KS15 is rated for 5 A.
The S761KS15 is rated for 30 VDC.
The S761KS15 is designed for free hanging (in-line) mounting.
The S761KS15 has an IP68 ingress protection rating.
The S761KS15 uses solder eyelet termination.
The industry recognized mating diameter is 2.00 mm ID and 5.50 mm OD.
